Breadth-First Search Algorithm

Breadth-First Search (BFS) is a graph traversal algorithm that explores vertices level by level. Starting from a source node, it visits all its neighbors before moving to the next level of neighbors. This is achieved using a queue data structure, ensuring that the nearest nodes are visited first. BFS guarantees the shortest path in an unweighted graph, making it a fundamental algorithm in computer science.

Practical uses of BFS are widespread. In navigation systems like Google Maps, BFS helps find the shortest path between locations when distances are equal or irrelevant. It’s also used in web crawlers to explore web pages layer by layer and in peer-to-peer networks (like BitTorrent) to search for data.

In AI and game development, BFS finds solutions or routes in puzzles and maps. Additionally, BFS is critical in social network analysis, helping identify connections and degrees of separation between users.

BFS remains relevant today because of its simplicity, efficiency, and foundational role in understanding more complex algorithms. It is a go-to method when shortest path solutions are required without weights, and it’s the basis for many real-time and large-scale applications across fields like data science, cybersecurity, and robotics. BFS algorithm builds a strong foundation for understanding more advanced algorithms like Dijkstra’s, A*, and even tree/graph-based AI techniques.

What You’ll Learn

How to animate a BFS (Breadth-First Search) traversal using Manim
Understand each component of the animation step by step
How to build and render this animation yourself

Code Overview and Setup

from manim import *

class BFSVisualization(Scene):

from manim import *: This imports all necessary Manim classes and functions for creating animations.
class BFSVisualization(Scene): This defines a new animation scene. The Scene class is the foundation in Manim for any animation.

Creating Graph Nodes

def create_circle_node(self, node_id, position):
    circle = Circle(radius=0.4, color=WHITE, fill_opacity=0.3, stroke_width=4)
    text = Text(str(node_id), font_size=32).scale(0.8)
    node = VGroup(circle, text).move_to(position)
    return node

What does this code do?

circle: Creates a circular shape to represent a graph node.
text: Places a label (number) inside the node.
VGroup(circle, text): Combines both the circle and the text so they move as a single object.
.move_to(position): Places the node at a specific position on screen.
return node: Returns this grouped object to be used later in the scene.

Creating Graph Edges

def create_edge(self, start, end):
    return Line(
        start.get_center(),
        end.get_center(),
        color=WHITE,
        stroke_width=8
    )

Creates a line between two node centers.
Used to represent connections (edges) in the graph.
start and end are node objects with center positions.

Legend and Explanation Panels

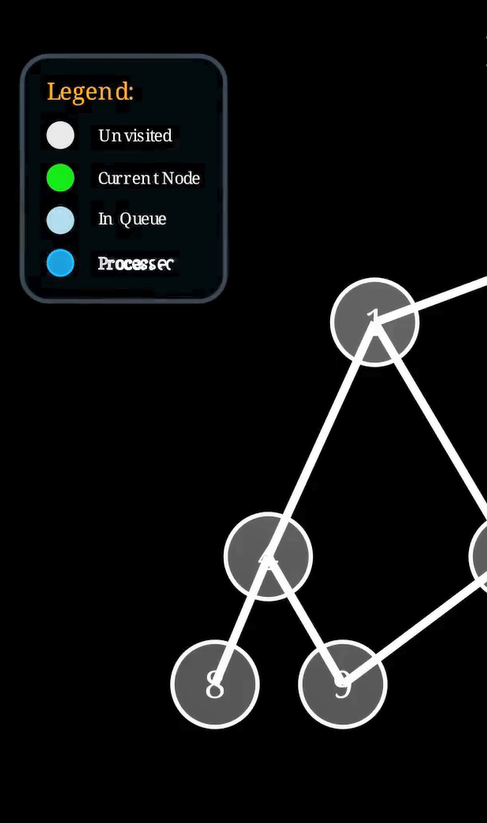

def create_legend_item(self, text, color):
    dot = Dot(color=color, radius=0.15, stroke_width=2)
    text = Text(text, font_size=14, color=WHITE)
    return VGroup(dot, text).arrange(RIGHT, buff=0.3)

dot: A small circle used to represent a legend color.
text: Description next to the dot.
VGroup(...).arrange(RIGHT): Places the dot and text horizontally.

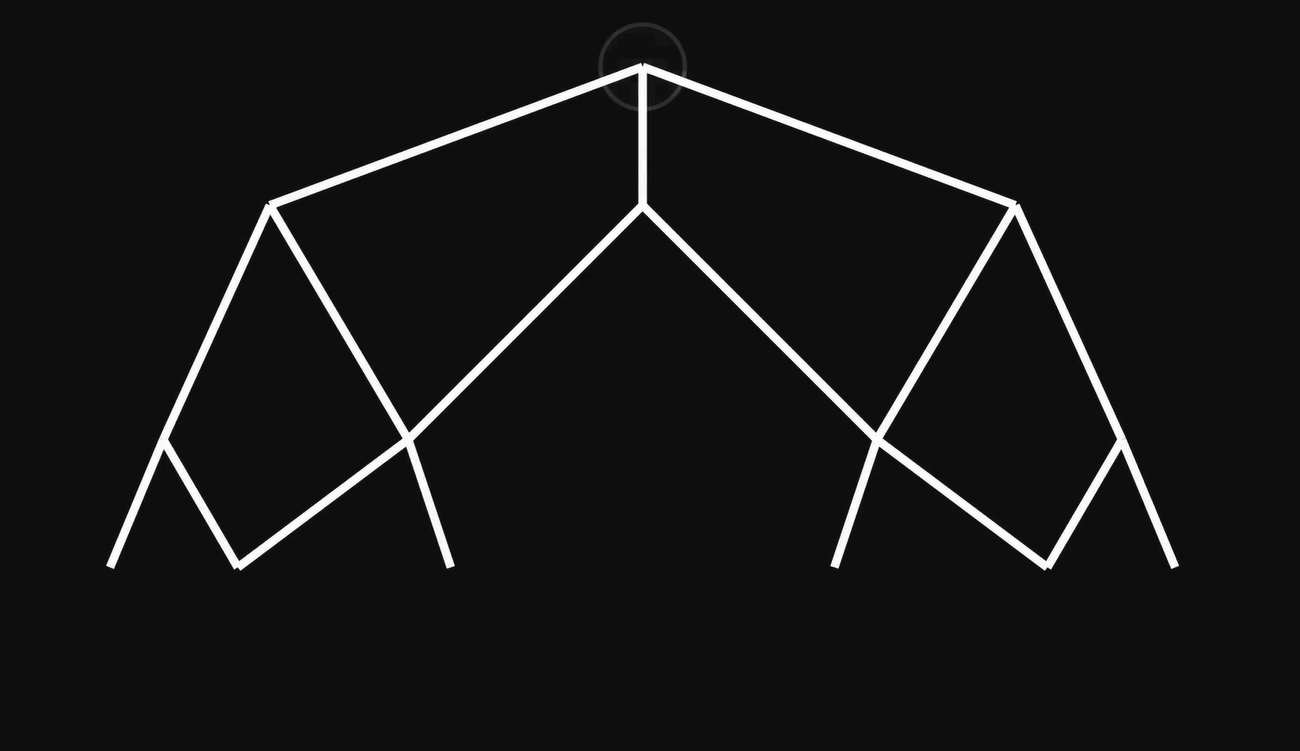

Laying Out the Graph

positions = {
    0: ORIGIN + UP * 2.5,
    1: LEFT * 3.5 + UP * 1.2,
    ...
}
nodes = {i: self.create_circle_node(i, pos) for i, pos in positions.items()}

Manually defines each node’s position on the canvas.
nodes is a dictionary mapping node IDs to their visual representations.

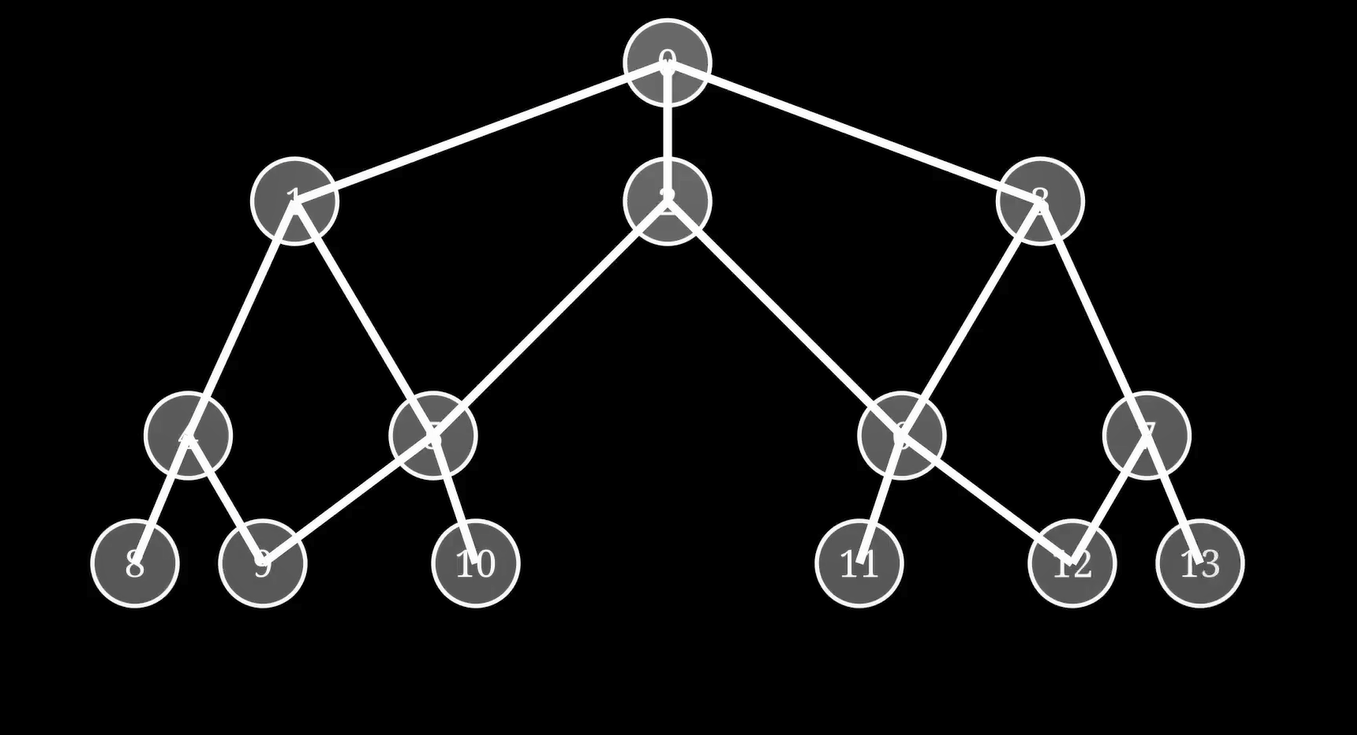

Edge Definitions

edges = [(0, 1), (0, 2), ..., (7, 13)]
edge_objects = {edge: self.create_edge(nodes[edge[0]], nodes[edge[1]]) for edge in edges}

edges list defines graph connectivity.
edge_objects stores Line objects between node pairs.

Titles and Annotations

title = Text("Breadth-First Search (BFS)", font_size=28).to_edge(UP)
subtitle = Text("Level by Level Graph Traversal", font_size=20).next_to(title, DOWN)

Creates main and subtitle text.
Places at the top of the animation scene.

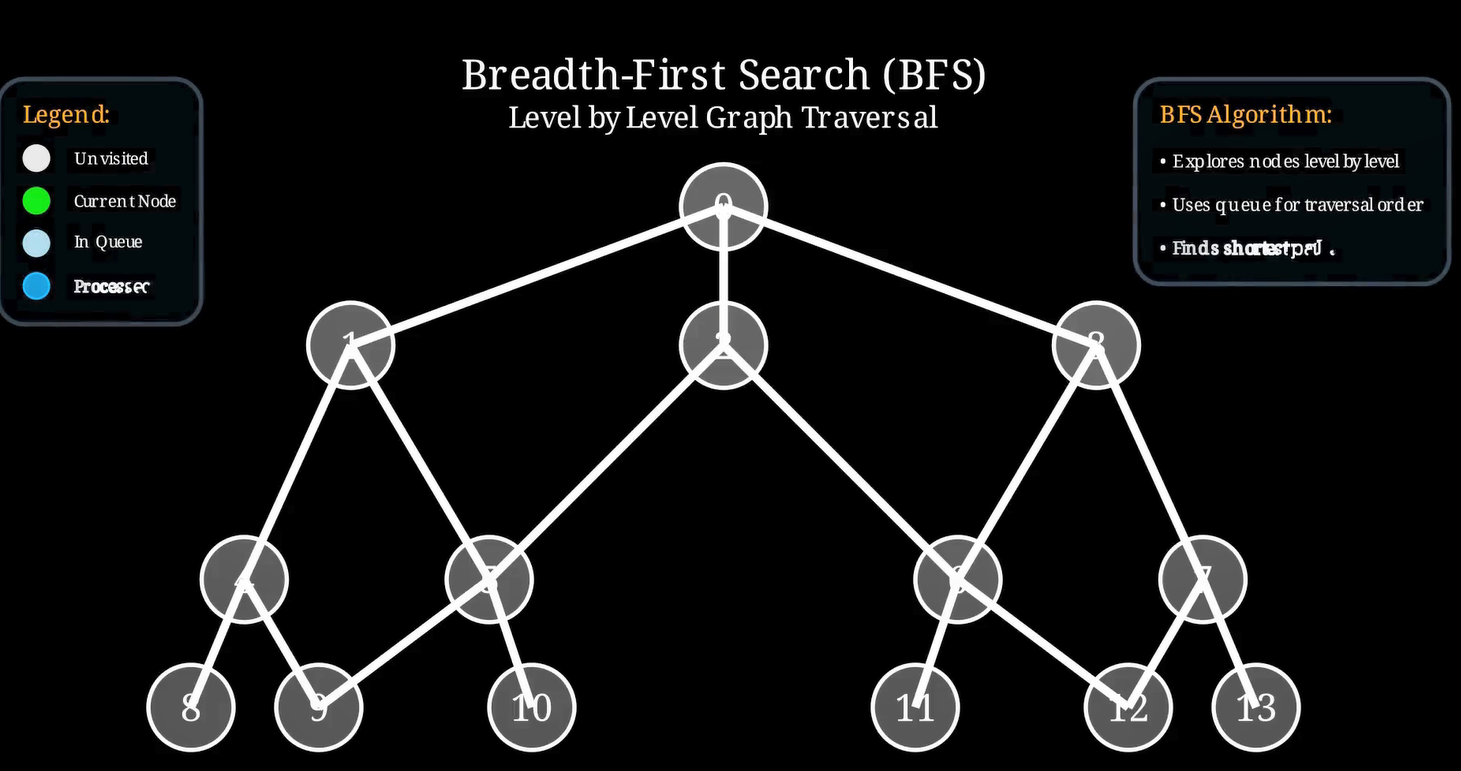

Legend and Algorithm Summary

legend_group = VGroup(...)
explanation_group = VGroup(...)

legend_group: Groups the legend items.
explanation_group: Groups algorithm descriptions.
These help viewers interpret the animation.

BFS Initialization

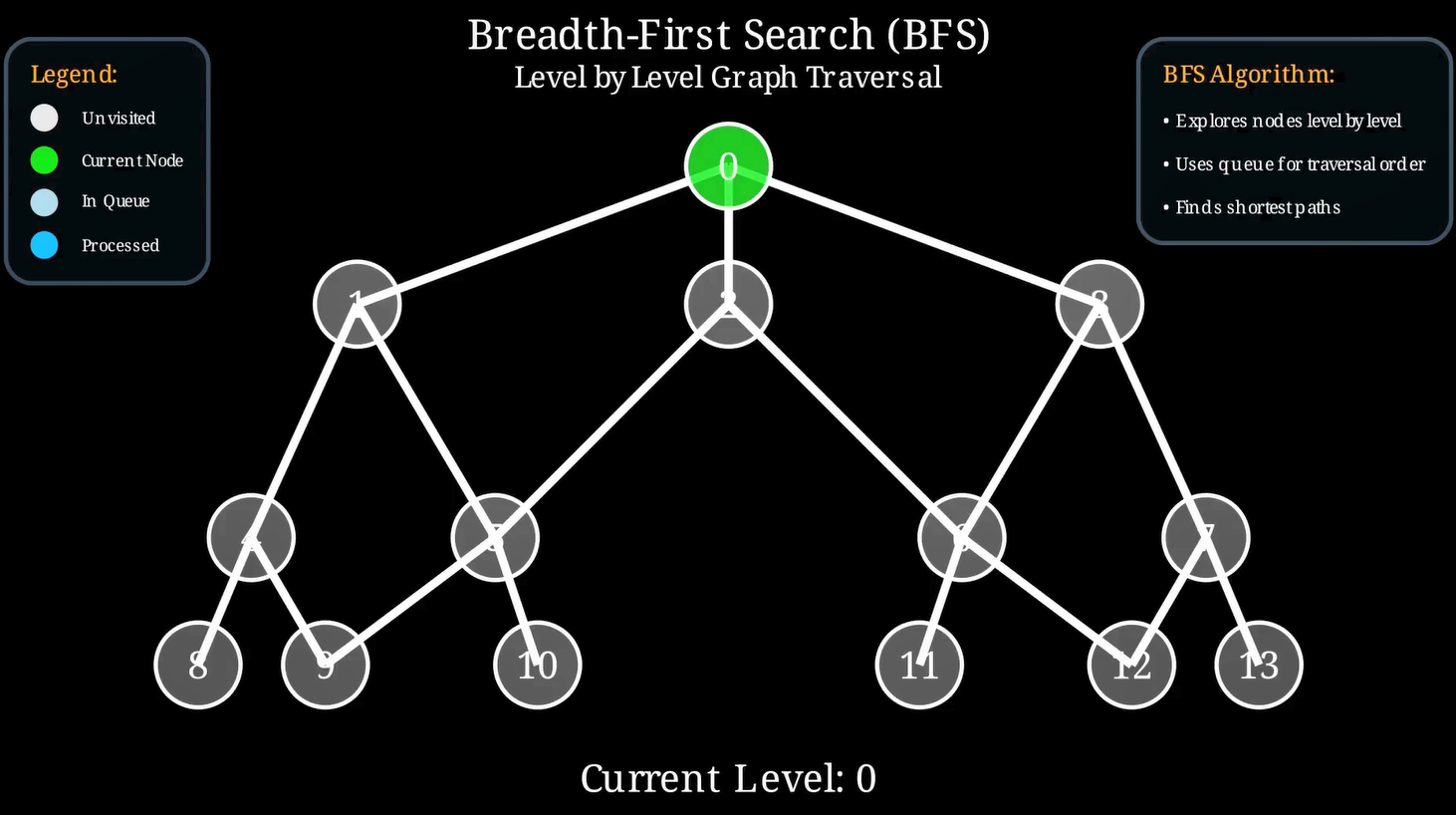

queue = [0]
visited = set()
current_level = 0

Start BFS from node 0.
queue holds nodes to visit.
visited tracks explored nodes.
current_level shows BFS depth.

Traversal Logic

while queue:
    current = queue.pop(0)
    ...

Loops while nodes remain in the queue.
Dequeues a node and processes it.
Neighbors are enqueued if unvisited.

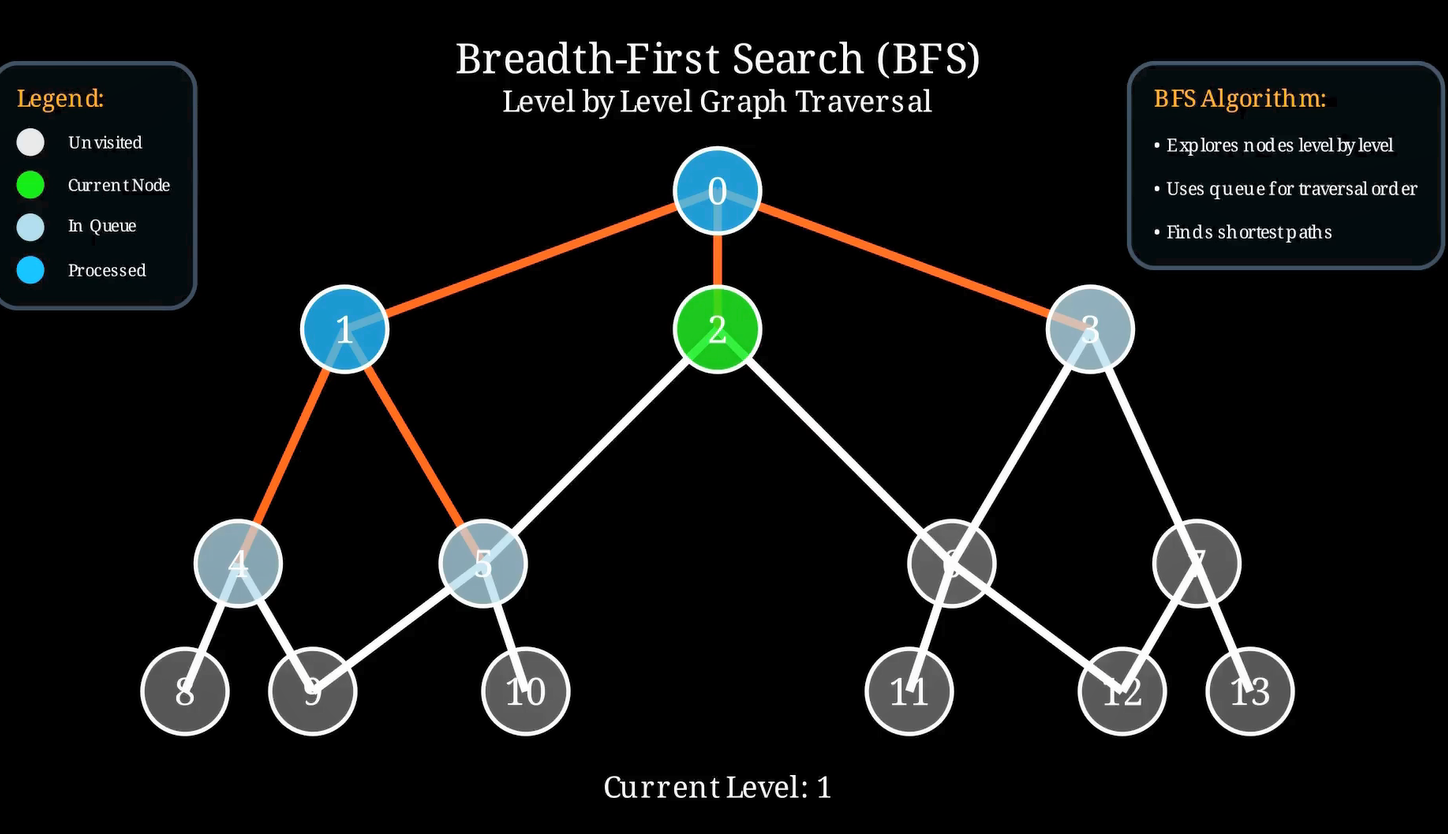

Node & Edge Coloring

Colors:

CURRENT_COLOR: currently visited node (green)
QUEUE_COLOR: newly enqueued node (light blue)
PROCESSED_COLOR: fully processed node (blue)
PATH_COLOR: traversed edge (orange)

.animate.set_fill(COLOR, opacity=X)
.animate.set_color(PATH_COLOR)

These functions change color and opacity over time.

Level Tracking

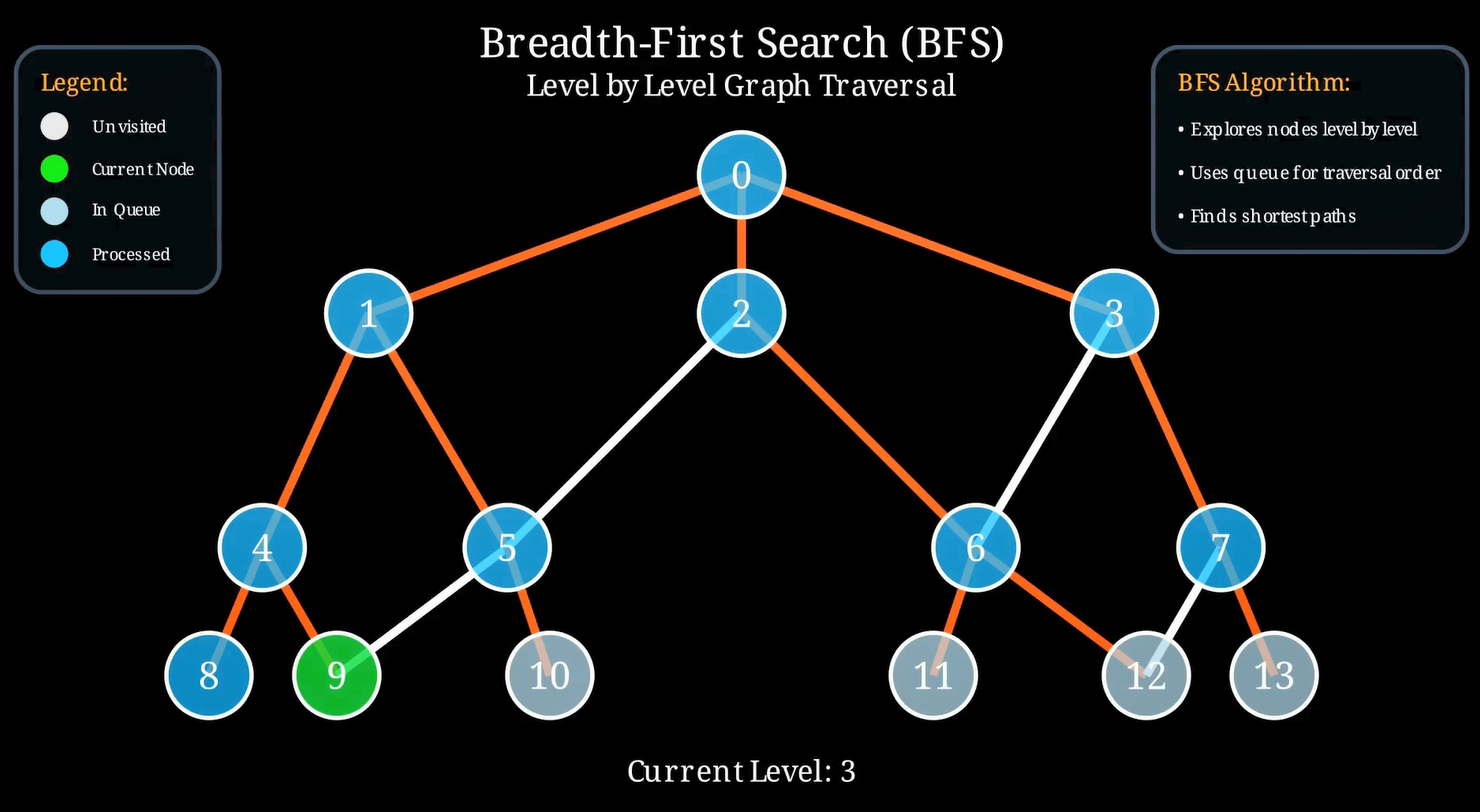

level_label = Text("Current Level: 0")
Transform(level_label, new_label)

Shows which BFS depth level is being processed.
Updated when BFS moves to the next level from 0-1-2..

Summary of Animation Steps

Define node positions and create nodes.
Define and draw graph edges.
Display BFS title, legend, and explanation panels.
Animate BFS:
- Highlight current node (green)
- Show neighbors entering the queue (light blue)
- Traverse edges (orange)
- Update level display
- Mark node as processed (blue)
Pause to show final traversal state.

Running the Animation

Save your script as bfs.py
Open terminal and run:

manim -pql bfs.py BFSVisualization

-pql: Preview in low quality (faster rendering)

manim -pqh bfs.py BFSVisualization

Questions or Ideas?

Try changing graph layout or colors
Can you extend this to DFS?
Want to animate the queue visually?

Let’s explore more together!
