title: “A Backtracking in Triangle Peg Solitaire” format: revealjs: output-file: “index.html” theme: simple —

Objective of this Presentation

Learn how to animate a backtracking algorithm using Manim.
Visualize **A*-like pathfinding in the context of solving the Triangle Peg Solitaire** puzzle.
Understand step-by-step animation creation, not just logic.

What is the A* Algorithm?

A* is a graph traversal and pathfinding algorithm.

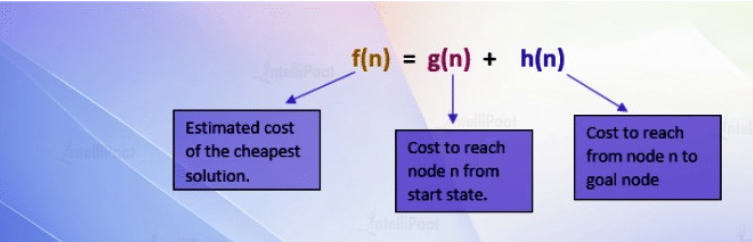

It finds the shortest path from a start node to a goal node using a combination of:
- g(n): cost from start to node n.
- h(n): heuristic estimate of cost from n to goal. Chooses path minimizing f(n) = g(n) + h(n).

Why is A* Important?

Combines efficiency and optimality (with admissible heuristics).
Widely used in:
- Game development for NPC movement.
- Robotics for obstacle-aware navigation.
- GPS routing (e.g., Google Maps).
- AI systems where intelligent traversal is needed.

Example: A* in Games and Robotics

Games: Used to compute AI paths avoiding obstacles.
Robotics: Robots plan efficient movement in uncertain terrains.
Logistics: Route optimization in delivery or warehouse systems.

The Triangle Peg Puzzle

Board has 15 pegs arranged in a triangle.
One peg is initially empty.
Pegs jump over each other into empty holes.
The goal is to end with one peg in the center.

We’ll animate a solving algorithm with backtracking to highlight decision paths and corrections.

🔧 Step 1: Setup Your Manim Scene

from manim import *

class PegGame(Scene):
    # Your scene and animation logic will go here

Inherit from Scene to define the animation.
Manim lets you animate vector graphics using Python.

Step 2: Define Peg Positions

    positions = [
        (0, 2, 0),    # Peg 1
        (-1.5, 1, 0), (1.5, 1, 0),  # Pegs 2, 3
        (-3, 0, 0), (0, 0, 0), (3, 0, 0),  # Pegs 4, 5, 6
        (-4.5, -1, 0), (-1.5, -1, 0), (1.5, -1, 0), (4.5, -1, 0),  # Pegs 7-10
        (-6, -2, 0), (-3, -2, 0), (0, -2, 0), (3, -2, 0), (6, -2, 0),  # Pegs 11-15
    ]

Defines the layout of the triangle board.
These positions are used for drawing and animation.

Step 3: Draw the Board

def draw_board(self, board, highlight_reversed=False):
    # Drawing logic here
    # Filled pegs: blue circles
    # Empty holes: gray circles
    # highlight_reversed: red pegs for backtracking
    # Number overlays for clarity

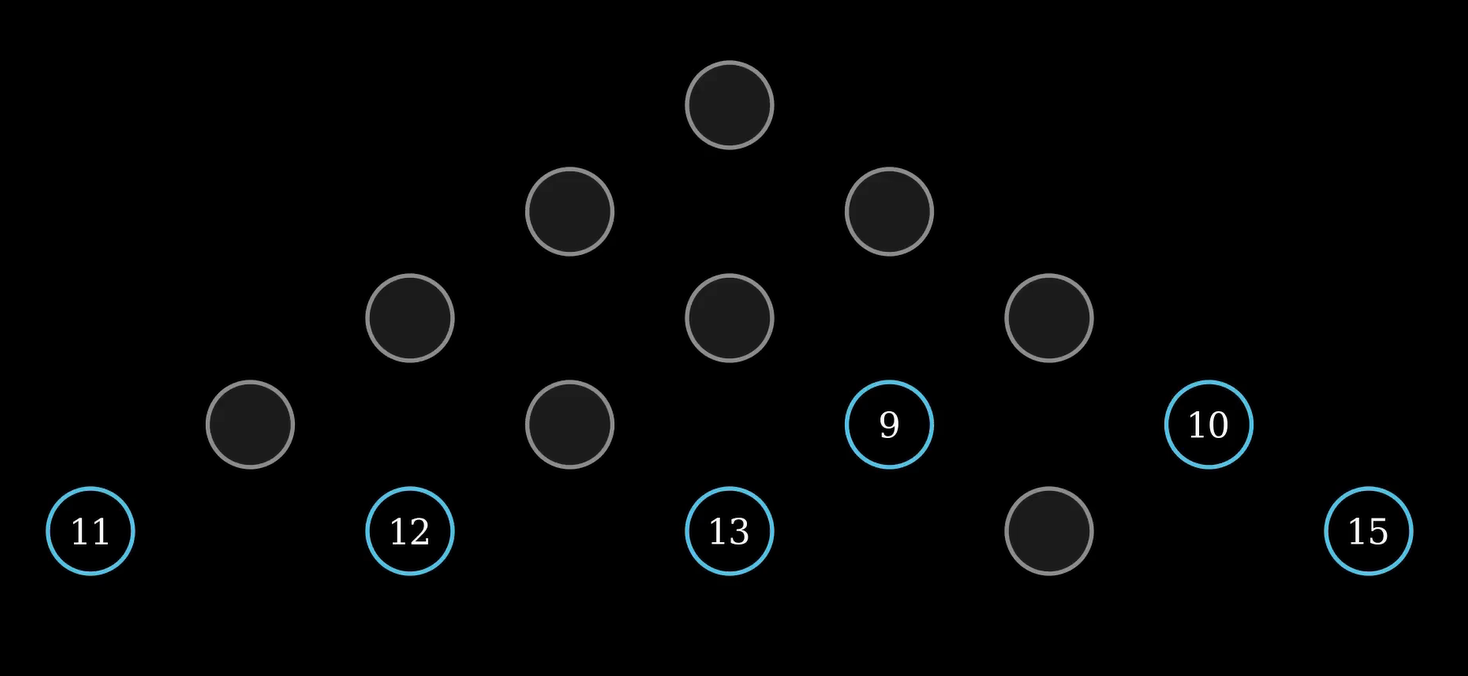

Filled pegs are drawn with blue circles.
Empty holes are gray.
If highlight_reversed=True, backtracked pegs are drawn red.
Peg numbers are overlaid for clarity.

Creating the Pegs Visually

peg = Circle(radius=0.4, color=BLUE).move_to(pos)
self.add(Text(str(idx), font_size=24).move_to(pos))

Each peg is a Circle. Peg number added using Text.

Step 4: Animate a Move

def play_move(self, peg, over, land, board, is_reversed=False):
    # Animate a single jump move
    # 1. Peg jumps over another
    # 2. Jumped-over peg disappears
    # 3. Peg lands on a new spot

Move Animation

self.play(
    MoveAlongPath(Dot(radius=0.2).move_to(start), Line(start, end)),
    FadeOut(Dot().move_to(over_pos))
)

First line animates the jump.
Second line fades out the peg that was jumped over.

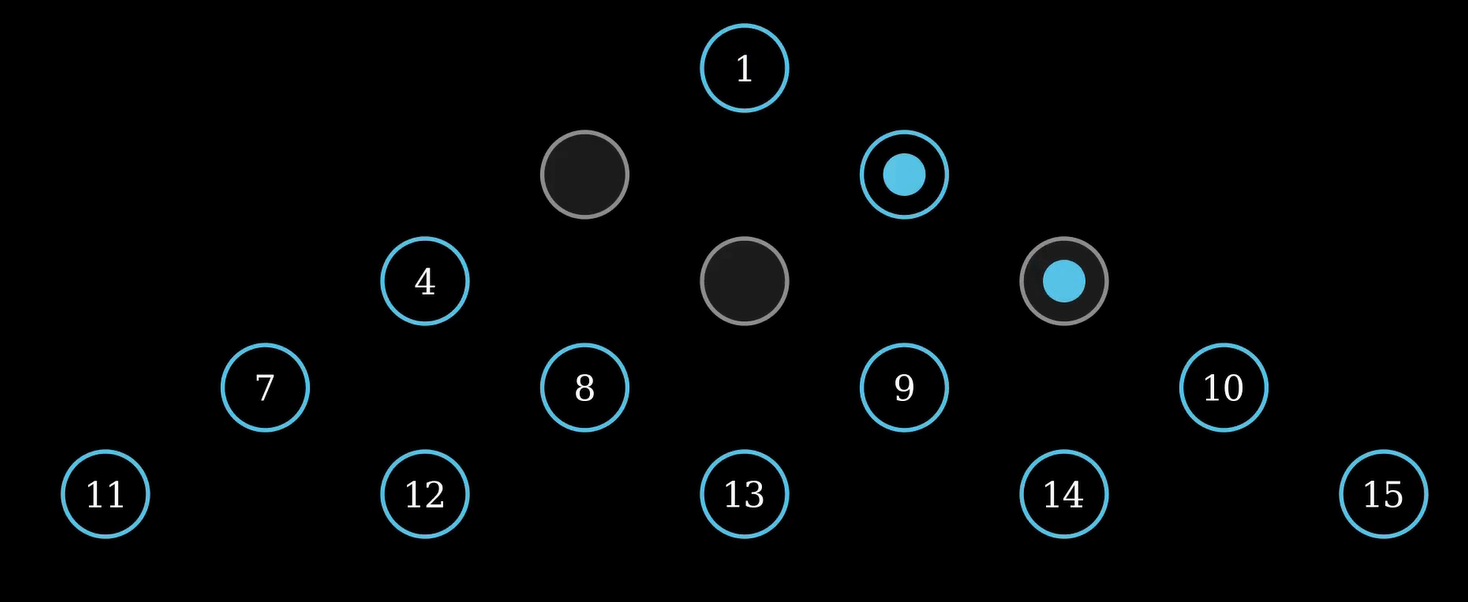

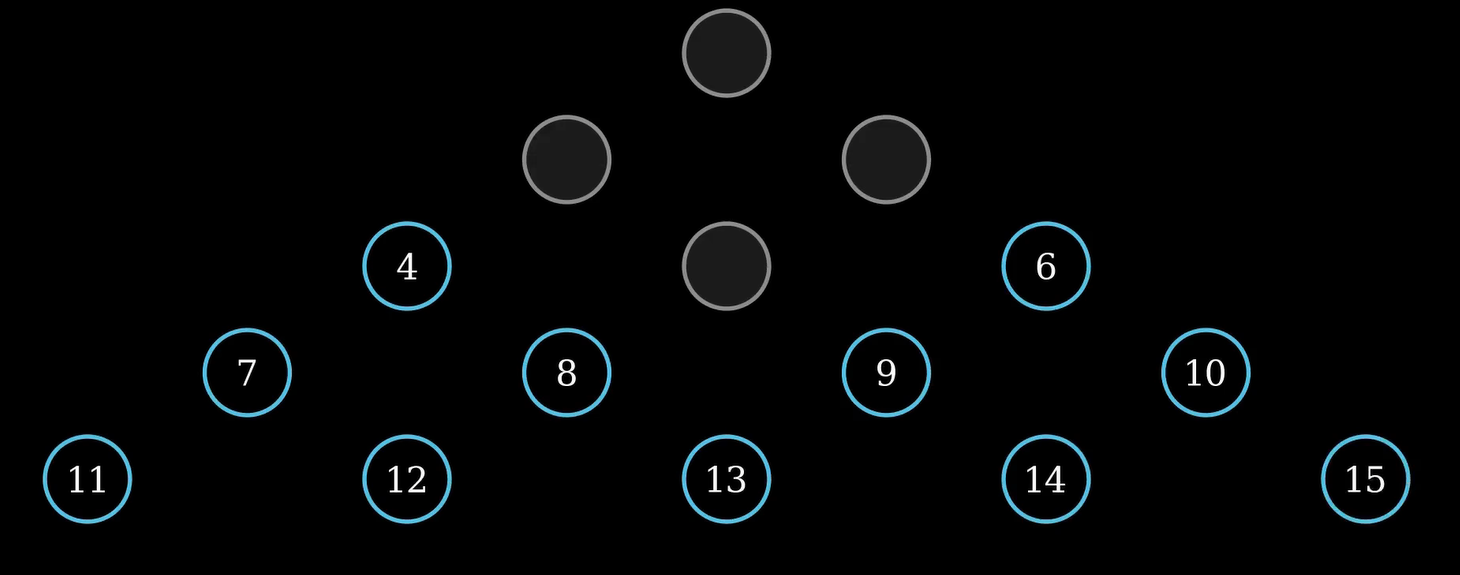

the attached screenshots indicates peg jumping over peg 5, then the second lines fades the peg that was jumped.

Step 5: Build the Construct Method

def construct(self):
    # 1. Add title/subtitle
        title = Text("Backtracking Algorithm for Solving the Triangle Solitaire Puzzle", font_size=22, color=BLUE).to_edge(UP*0.5)
        subtitle = Text("Backtracking Moves", font_size=20, color=DARK_GREY).next_to(title, DOWN, buff=0.1)


        # Add stroke to subtitle for better visibility
        subtitle.set_stroke(color=WHITE, width=1, opacity=0.4)

        # Apply blue edge-up effect on title
        title.set_stroke(color=BLUE, width=1)
        self.play(Create(title))

        run_time=4
    # 2. Define starting board
    # 3. Animate the initial setup
    # 4. Execute list of moves (correct → wrong → backtrack → continue)

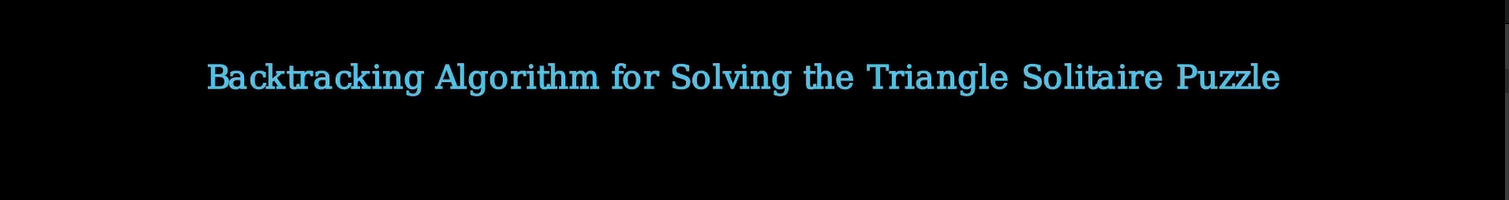

Create a title using Text:
- Displays: “Backtracking Algorithm for Solving the Triangle Solitaire Puzzle”
- Font size is set to 22.
- Text color is BLUE.
- Positioned near the top edge of the screen using .to_edge(UP*0.5).
Create a subtitle:
- Displays: “Backtracking Moves”
- Font size is 20.
- Color is DARK_GREY.
- Placed just below the title using .next_to(title, DOWN, buff=0.1).
Improve subtitle visibility by applying a stroke (outline):
- White stroke (WHITE) with width 1 and low opacity (0.4) so it stands out without being too bold.
Enhance the title appearance:
- Apply a BLUE stroke to the title text using .set_stroke.
Animate the title appearing on screen:
- Uses self.play(Create(title)) to draw the title text as an animation.
run_time = 4 is defined but not used in this snippet. (Could be intended for later animations.)

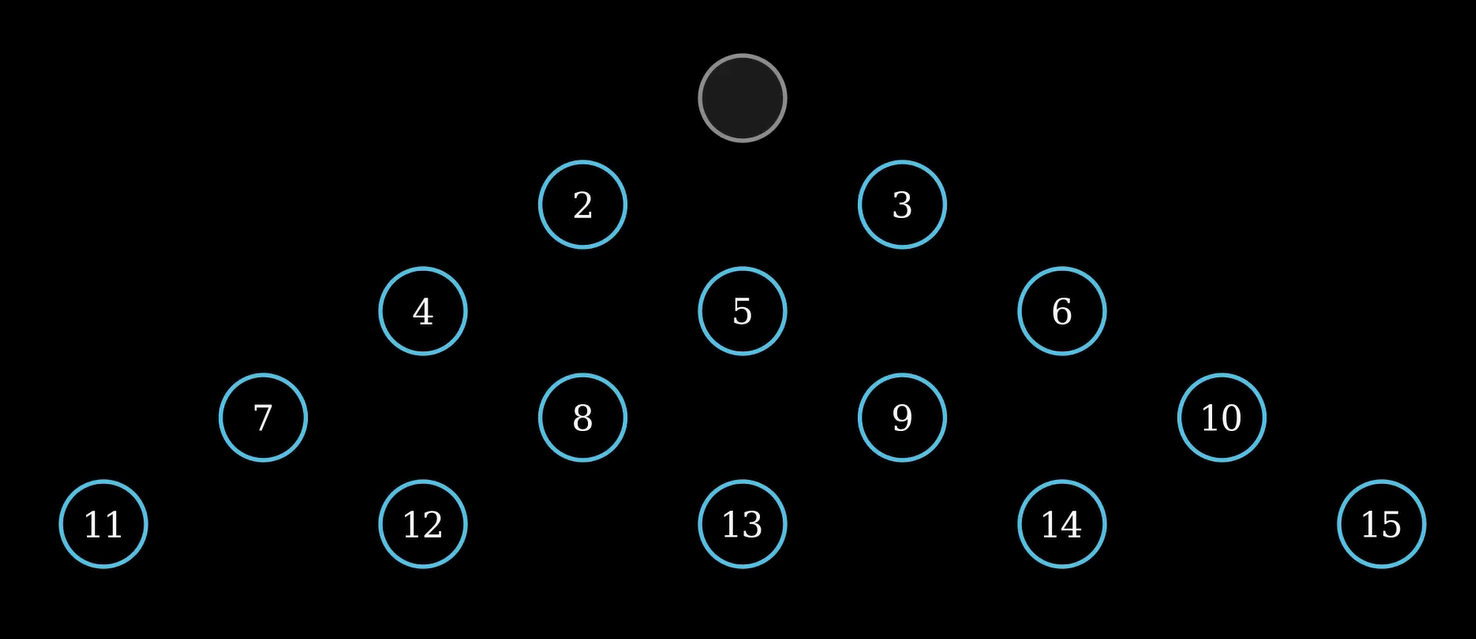

Step 6: Initial Setup

board = list(range(1, 16))
board.remove(1)  # Make peg 1 empty
self.draw_board(board)

Board starts with 15 pegs.
Peg 1 is removed (common starting state).
draw_board() renders this setup.

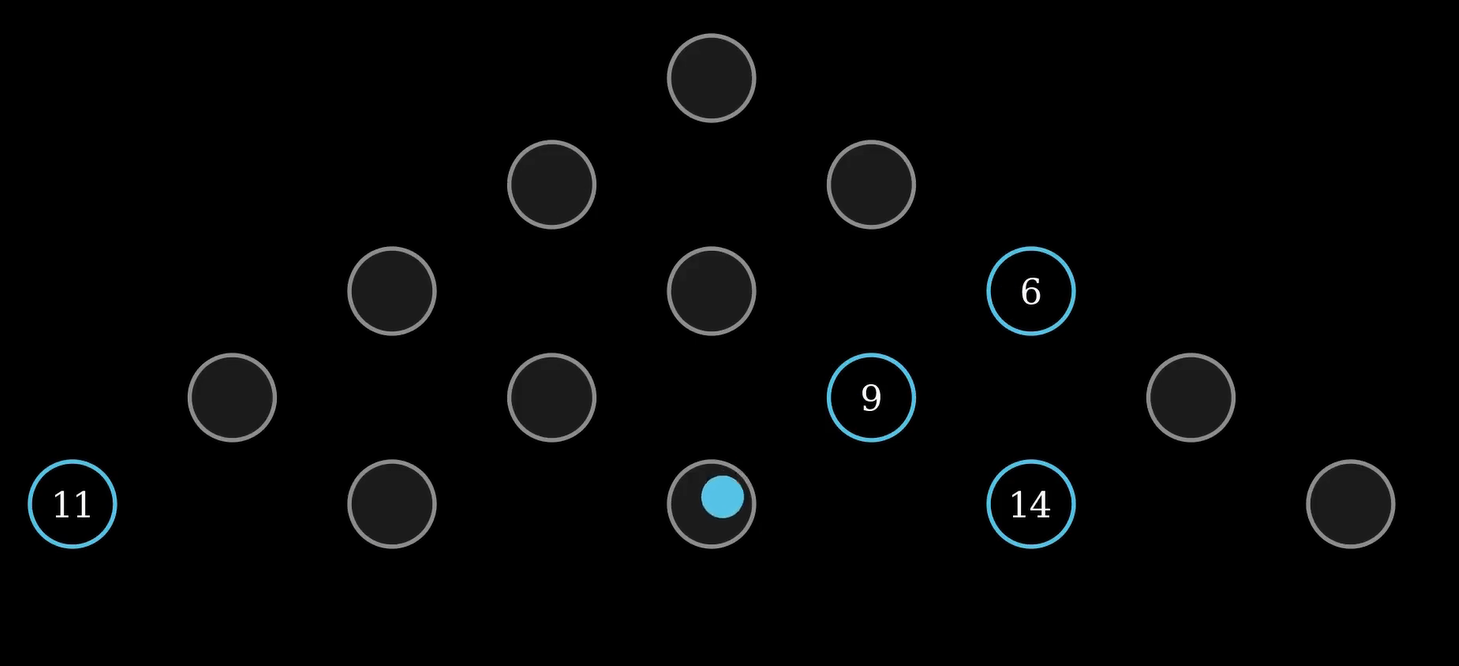

Step 7: Animate Correct Moves

solution_moves = [(4, 2, 1), (6, 5, 4), ...]
for peg, over, land in solution_moves:
    self.play_move(peg, over, land, board)

Each tuple is a move: (from, over, to).
The scene animates moves sequentially.
Short pauses allow viewer digestion.

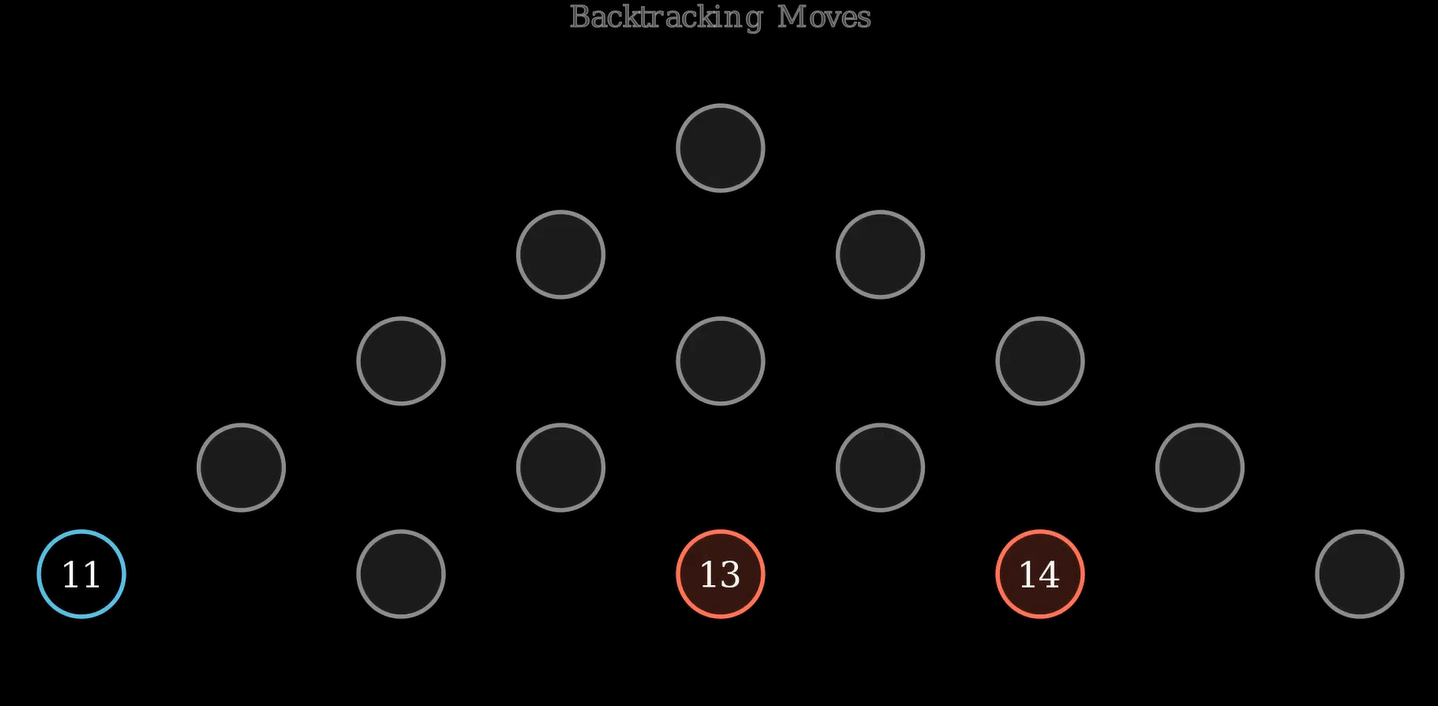

Step 8: Show Wrong Path

wrong_moves = [(6, 9, 13), (13, 14, 15)]

These are intentionally bad moves.
You’ll show the algorithm heading down an invalid path.

Key Idea: Visualize mistakes to prepare for backtracking.

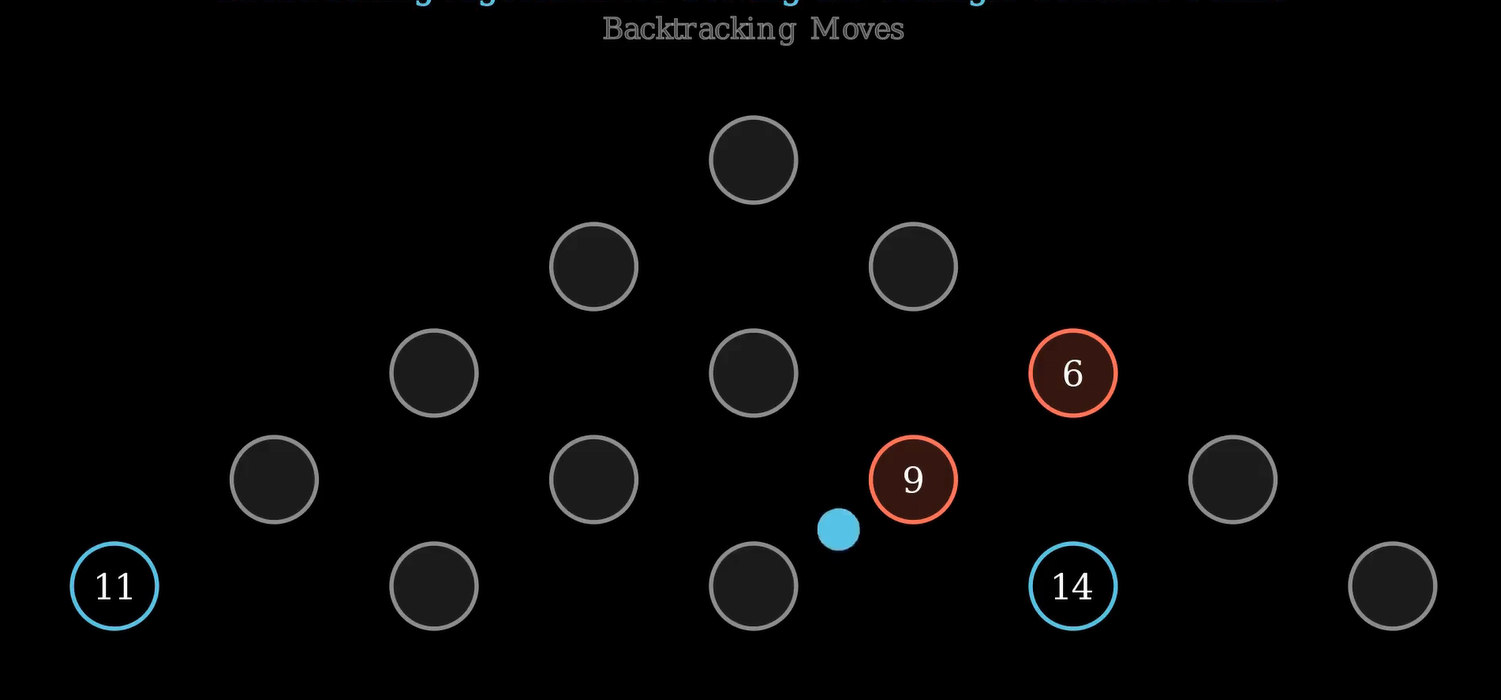

Step 9: Animate Backtracking

for peg, over, land in reversed(wrong_moves):
    board.remove(land)
    board.append(over)
    board.append(peg)
    self.reversed_pegs = [peg, over]
    self.draw_board(board, highlight_reversed=True)

Undoes the move by reverting the board state.
draw_board is called again with red pegs to show reversal.

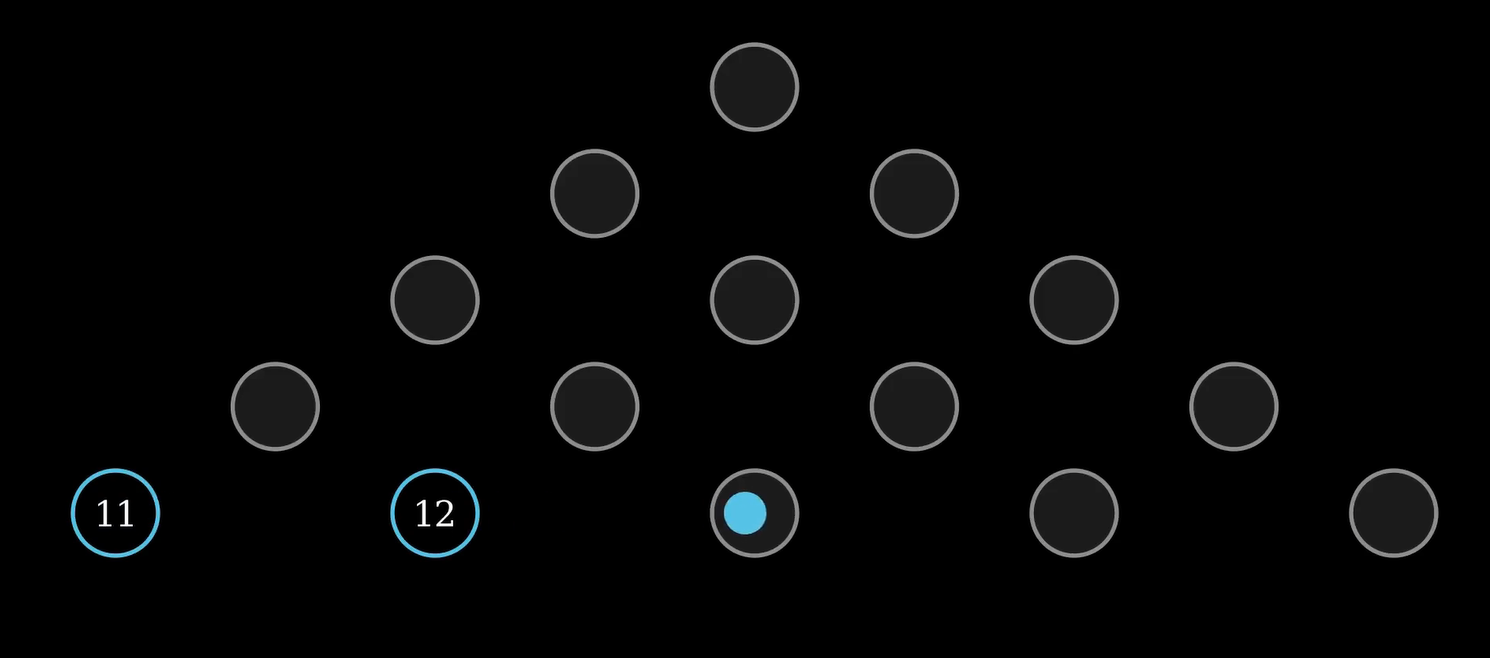

Step 10: Resume Correct Path

correct_moves_after_backtrack = [(6, 9, 13), (14, 13, 12), ...]
# Resume solving after backtracking.
# Continue until puzzle is solved or max depth reached.

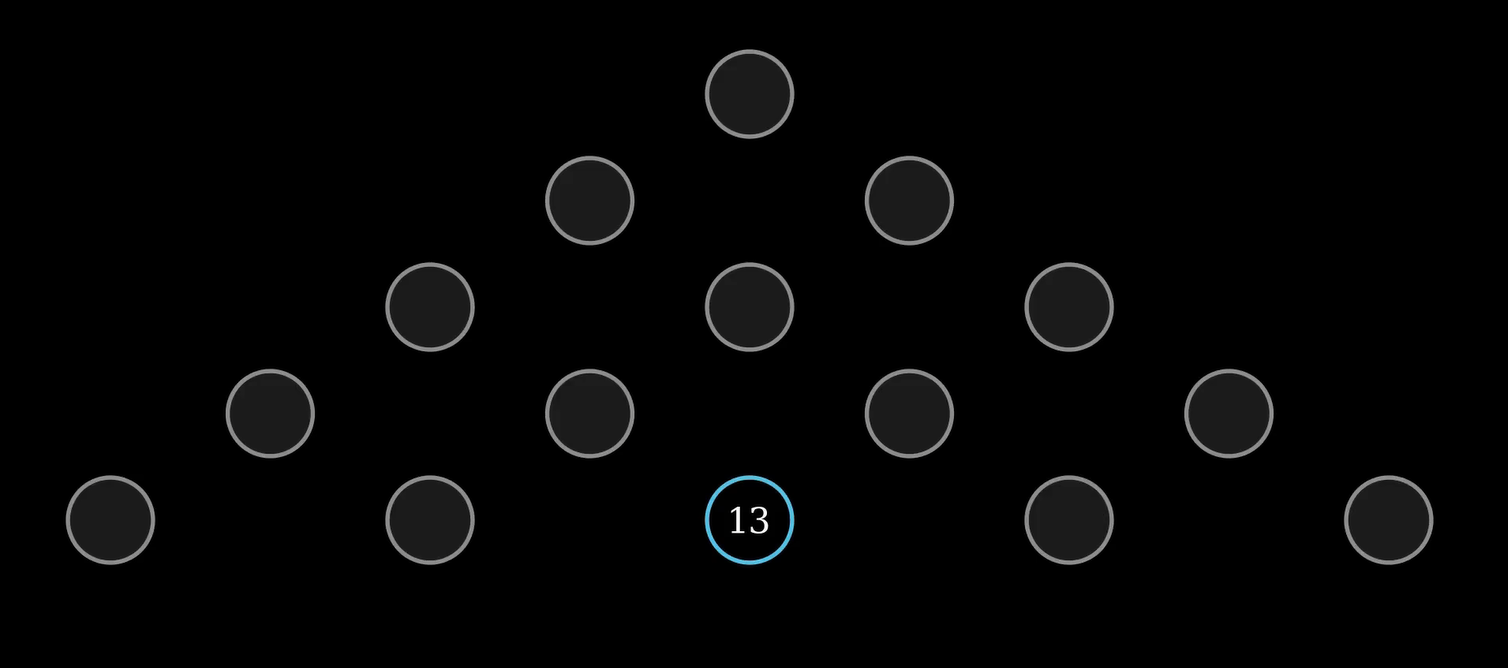

Final Animation Touch

final_group = Group(*self.mobjects)
self.play(FadeOut(final_group, run_time=4))

Smooth fade-out of all elements.
Ends animation cleanly.

Full Code Overview

The full code is available in the project folder and it combines: - Position setup - Drawing logic - Move animation - State management - Backtracking + visualization

Tips for Customization

Add move numbers or highlight paths.
Show decision trees alongside the board.
Add sound effects for jumps and backtracking.
Use VGroup, Transform, and FadeTransform for creative transitions.
