title: “Visualizing Geometric Intersections with Manim” format: revealjs editor: visual —

Introduction

This animation demonstrates how a straight line can intersect with a circle, resulting in: - Two points of intersection (secant line): The line cuts through the circle. - No intersection: The line misses the circle entirely. - Single point of intersection (tangent line): The line just touches the circle.

Mathematically, these intersection points are found by solving the simultaneous equations of the circle and the line: - Equation of the circle: \((x - h)^2 + (y - k)^2 = r^2\), where \((h, k)\) is the center and \(r\) the radius. - Equation of the line: \(y = mx + c\) (or any linear form).

Applications:
This concept is used in collision detection, where the intersection determines if an object (circle) is hit by a projectile (line).

---

1. Imports and Setup

from manim import *
import numpy as np

Explanation: - manim: This is the animation engine. It provides all the geometric objects (like Circle, Line, Dot), scene control (Scene, Create, Write), and math tools. - numpy: Used for mathematical calculations—square roots, vector norms, and arithmetic. Essential for computing intersections.

---

2. circle_line_intersection() Function

def circle_line_intersection(circle: Circle, line: Line):

This function computes the points where a line intersects a circle using analytical geometry.

    cline = line.copy().shift(-circle.get_arc_center())

• Moves the line so the circle center is at the origin.
• Why? The math for intersecting a circle centered at (0, 0) is simpler.

    x0, y0 = circle.get_arc_center()[:2]

• Gets the original center of the circle, to translate back later.

    x1, y1 = cline.get_start()[:2]
    x2, y2 = cline.get_end()[:2]
    r = circle.width / 2

• Extracts the endpoints of the shifted line.
• Radius is calculated from width (width = 2 × radius).

    dx = x2 - x1
    dy = y2 - y1
    dr = np.sqrt(dx**2 + dy**2)
    D = x1 * y2 - x2 * y1
    Delta = r**2 * dr**2 - D**2

• D is a determinant related to area.
• Delta is the discriminant:
  • Δ < 0: No intersection
  • Δ = 0: Tangent
  • Δ > 0: Secant (two points)

    if Delta < 0:
        return []

• No real solution → the line misses the circle.

    sqrt_Delta = np.sqrt(Delta)
    sign_dy = np.sign(dy) if dy != 0 else 1  # avoid zero division
    sx1 = (D * dy + sign_dy * dx * sqrt_Delta) / (dr**2) + x0
    sy1 = (-D * dx + abs(dy) * sqrt_Delta) / (dr**2) + y0
    sx2 = (D * dy - sign_dy * dx * sqrt_Delta) / (dr**2) + x0
    sy2 = (-D * dx - abs(dy) * sqrt_Delta) / (dr**2) + y0

• Uses analytical formulas to compute intersection point(s)—shifted back using x0, y0.

    if Delta == 0:
        return [np.array([sx1, sy1, 0])]
    else:
        return [np.array([sx1, sy1, 0]), np.array([sx2, sy2, 0])]

• Only one intersection (tangent) if Delta == 0, otherwise two points (secant).

---

3. circle_circle_intersection() Function

def circle_circle_intersection(circle1: Circle, circle2: Circle):

This function finds the intersection points between two circles using a geometric method.

    c0 = circle1.get_center()
    c1 = circle2.get_center()
    r0 = circle1.width / 2
    r1 = circle2.width / 2

• Extracts centers and radii of both circles.

    v = c1 - c0
    d = np.linalg.norm(v)

• v: Vector between centers.
• d: Distance between centers.

    if d > r0 + r1 or d == 0 or d < abs(r0 - r1):
        return []

• If circles are too far apart, exactly concentric, or one is inside the other with no intersection → no intersection.

    u = v / d

• u is the unit direction vector from center 1 to center 2.

    xvec = c0 + (d**2 - r1**2 + r0**2) * u / (2*d)

• Midpoint between the two intersection points (the base point).

    uperp = np.array([u[1], -u[0], 0])

• uperp: A vector perpendicular to u (used to offset to the left/right).

    a = np.sqrt(
        (-d + r1 - r0) *
        (-d - r1 + r0) *
        (-d + r1 + r0) *
        (d + r1 + r0)
    ) / (2 * d)

• Computes the distance from base to each intersection point using a Heron-like formula.

    return [xvec + a * uperp, xvec - a * uperp]

• Returns the two actual points of intersection.

---

4. line_line_intersection() Function

def line_line_intersection(line1: Line, line2: Line):
    return line_intersection([line1.get_start(), line1.get_end()],
                             [line2.get_start(), line2.get_end()])

• Uses manim.utils.geometry.line_intersection() internally.
• Assumes 2D line segments, returns a point of intersection.

---

5. IntersectionTest Scene

This is the core animation class that uses all the geometry logic.

Title and Grid

title = Text("Circle-Line Intersections Animation", color=BLUE, font_size=24)
self.play(Write(title))

number_plane = NumberPlane().add_coordinates().set_opacity(0.2)
self.add(number_plane)

• Displays an animated title.
• Adds a coordinate grid for context.

---

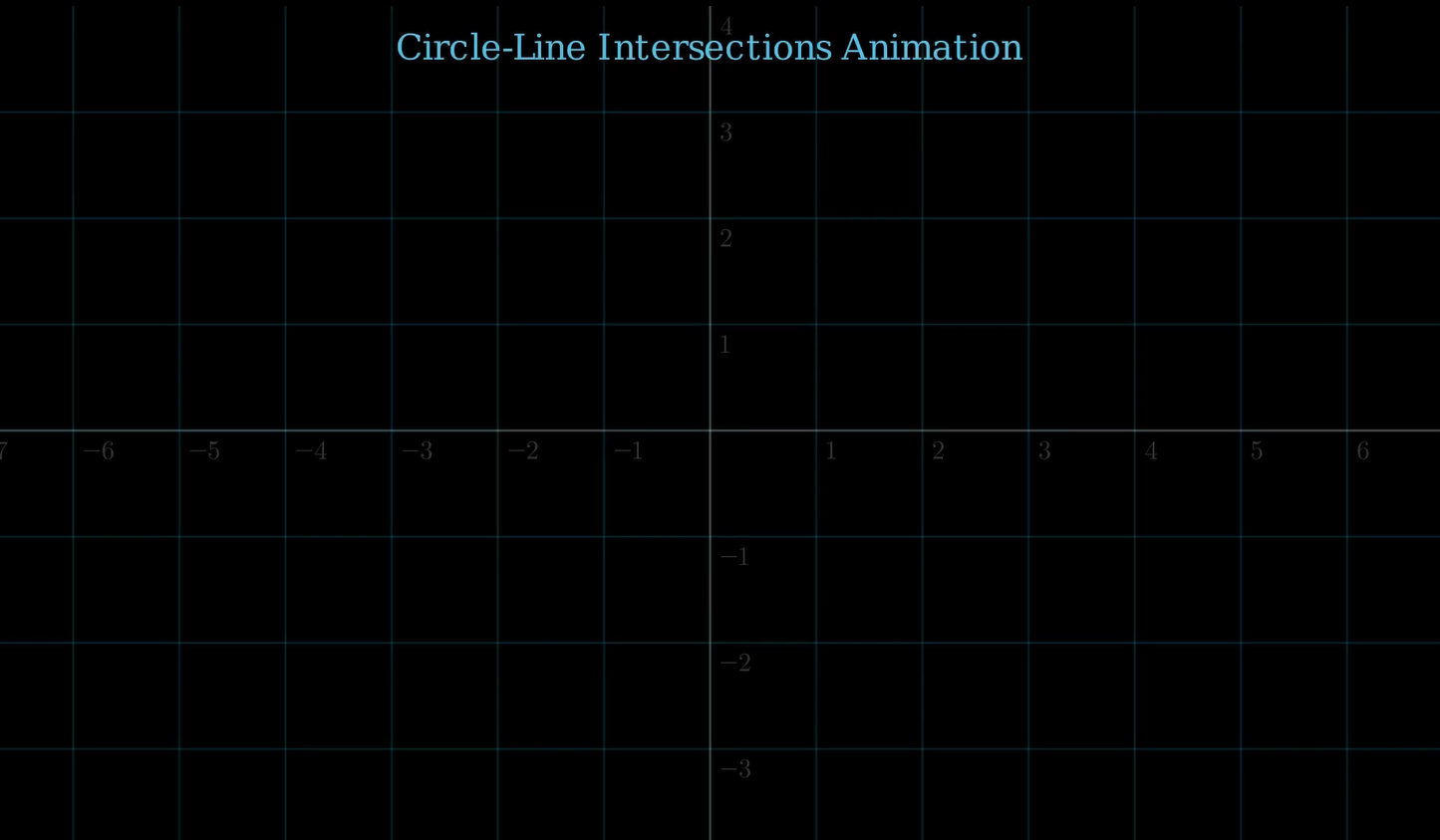

Title and the NumberPlane

---

Drawing Objects

circ1 = Circle(radius=3, color=RED).shift(2 * LEFT)
circ2 = Circle(radius=2, color=YELLOW).shift(DOWN)

• Two circles with different positions and sizes.

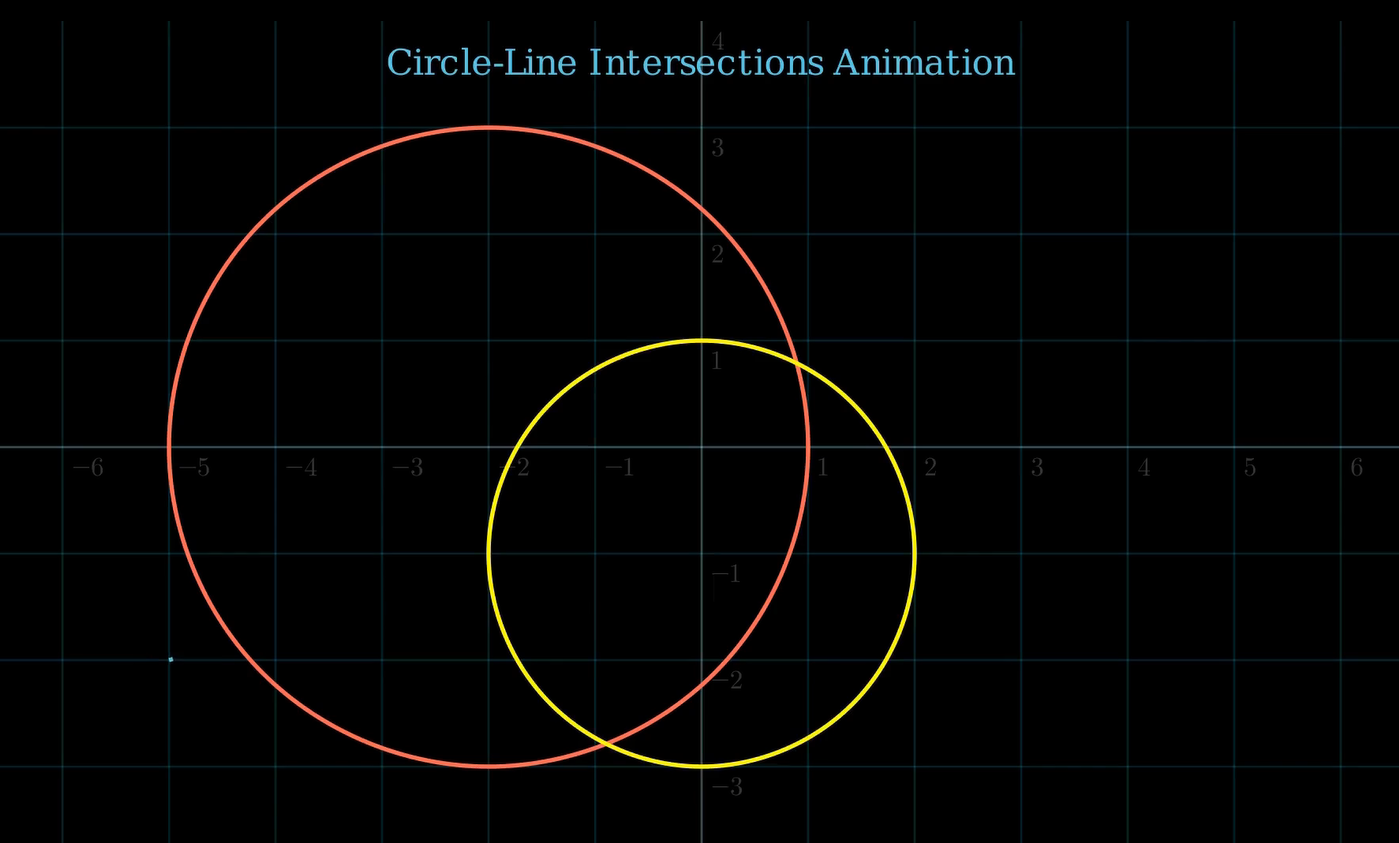

Two Circles in Different Sizes

---

line1 = Line([-5, -2, 0], [6, 1, 0], color=BLUE)
line2 = Line([-1, 4, 0], [5, -2, 0], color=MAROON)

• Two diagonal lines intersecting the circles.

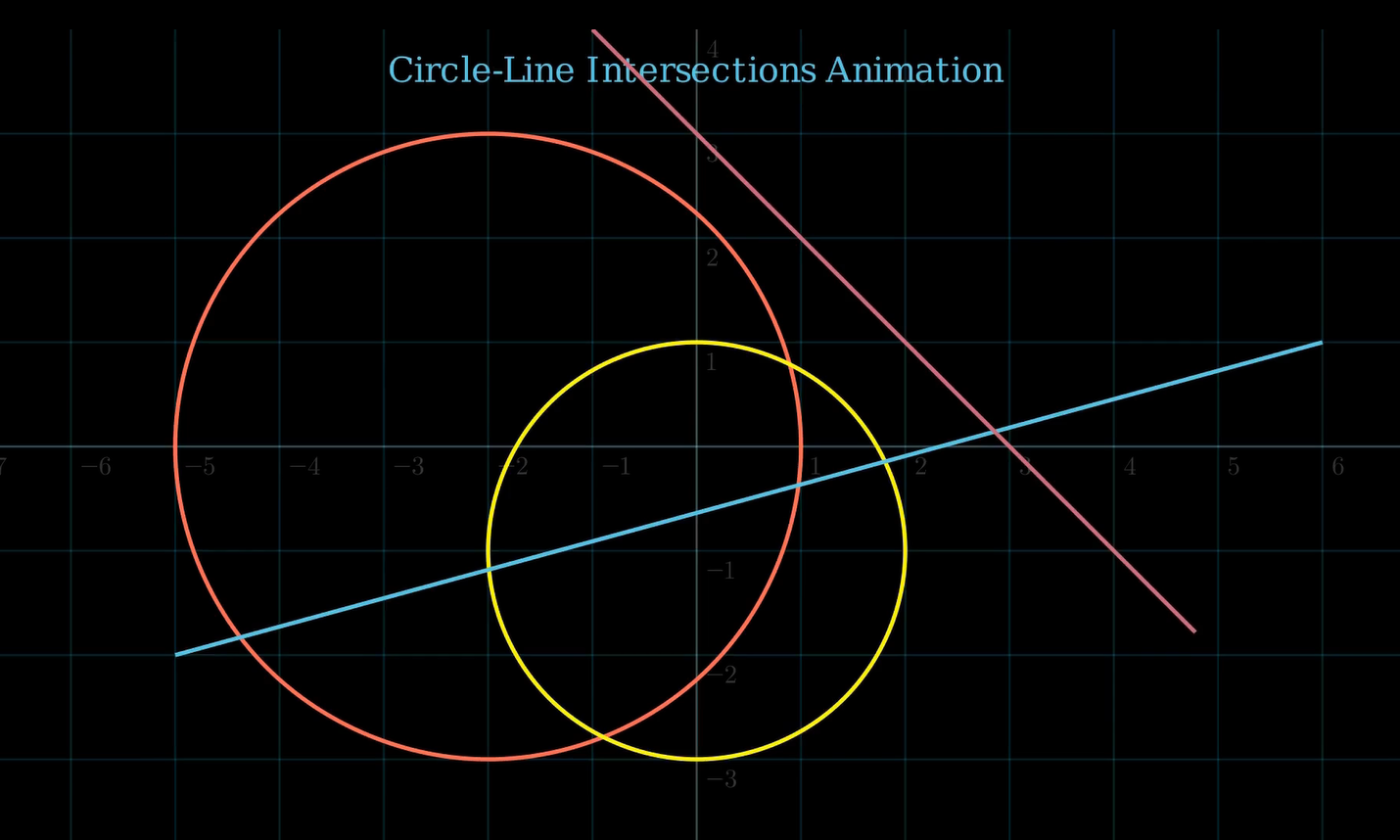

Two Diagonal Lines

---

Intersections

Circle-Circle:

Cs = circle_circle_intersection(circ1, circ2)

• Calls the custom function to get intersection points.

Cdots = VGroup(
    *[
        VGroup(Dot(p, color=ORANGE), MathTex(f"C_{{{i+1}}}").next_to(p, UR, buff=0.05))
        for i, p in enumerate(Cs)
    ]
)

• Places a dot and label (C₁, C₂) at each intersection.

---

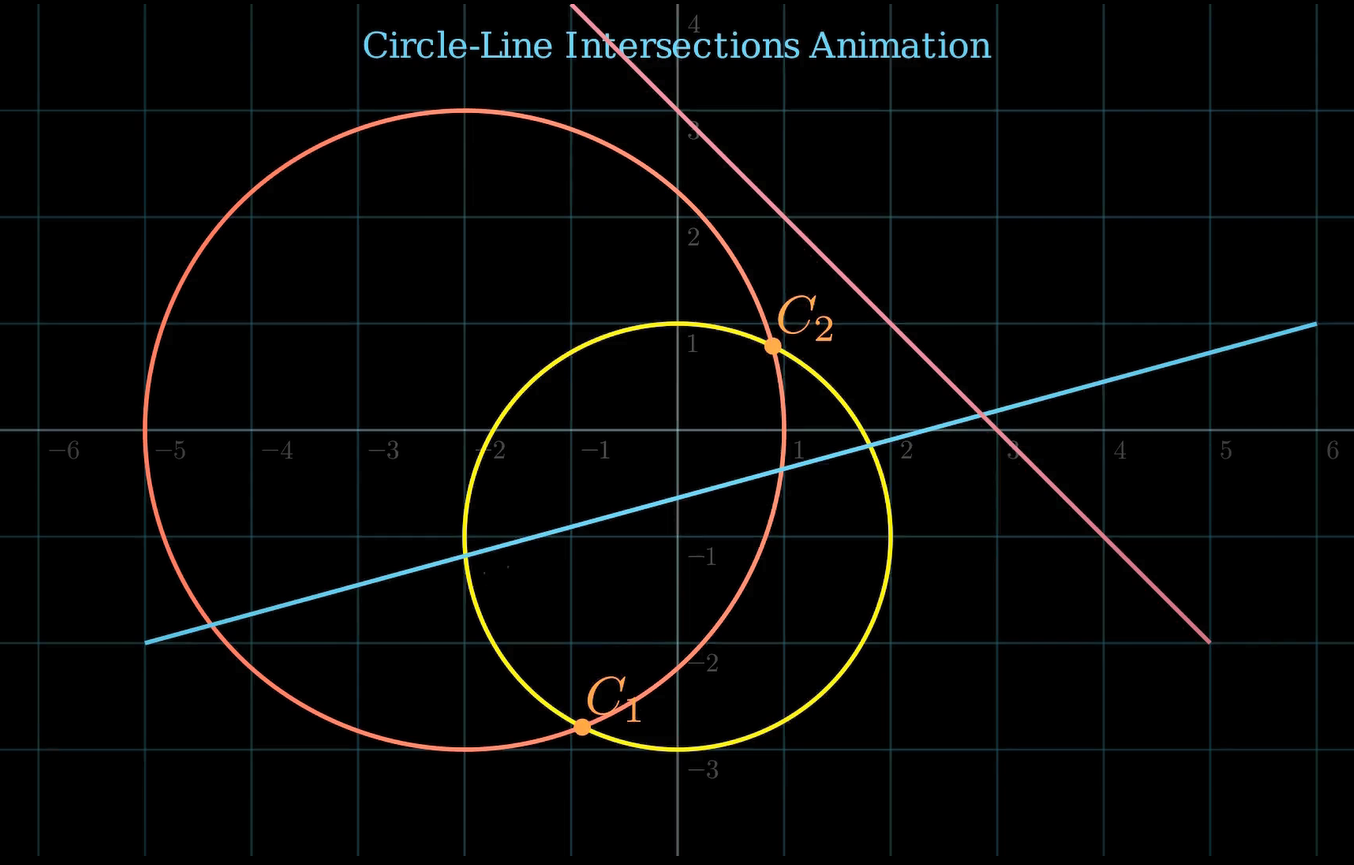

Intersection Points

---

Circle-Line:

Ds = circle_line_intersection(circ1, line1)
Ddots = VGroup(
    *[
        VGroup(Dot(p, color=GREEN), MathTex(f"D_{{{i+1}}}").next_to(p, DOWN, buff=0.1))
        for i, p in enumerate(Ds)
    ]
)

• Intersects the line with the first circle, labels them D₁, D₂.

---

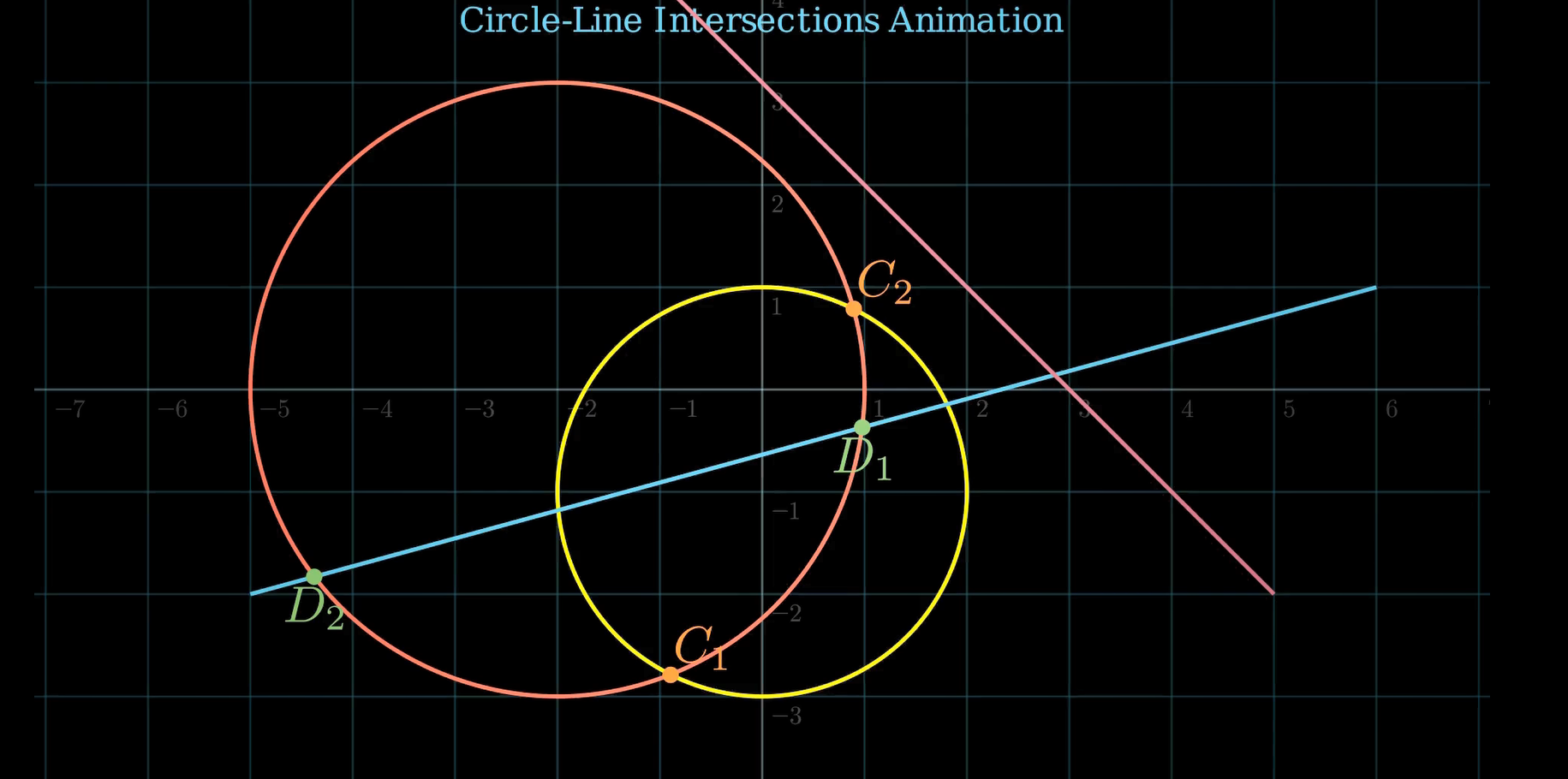

Intersections D1 & D2

---

Es = circle_line_intersection(circ2, line1)

• Same for the second circle → E₁, E₂.

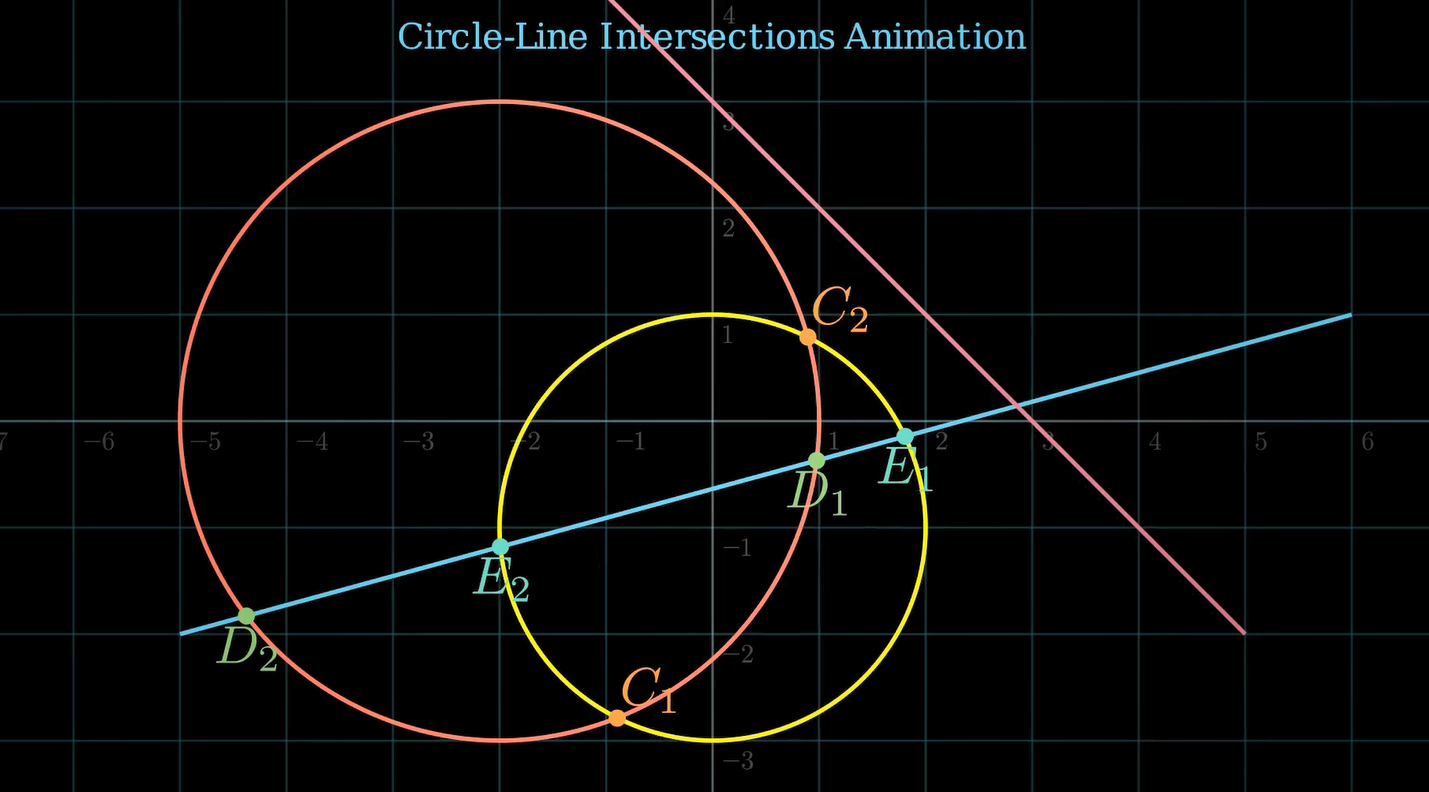

Intersection E1 & E2

---

Line-Line:

F = line_line_intersection(line1, line2)
Fdot = VGroup(Dot(point=F, color=WHITE), MathTex("F").next_to(F, UP, buff=0.1))

• Intersects the two lines, shows point F.

---

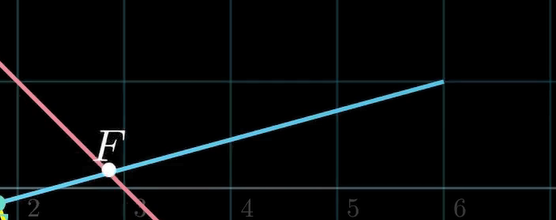

Line Intersection Point F

---

Text Annotations

text1 = Text("Circle-Circle Intersection: C1, C2", font_size=14).shift(UP * 3 + RIGHT * 5)
text2 = Text("Circle-Line Intersection: D1, D2, E1, E2", font_size=14).next_to(text1, DOWN, buff=0.1)
text3 = Text("Line-Line Intersection: F", font_size=14).next_to(text2, DOWN, buff=0.1)

• Adds a legend/explanation on the top right of the screen.

---

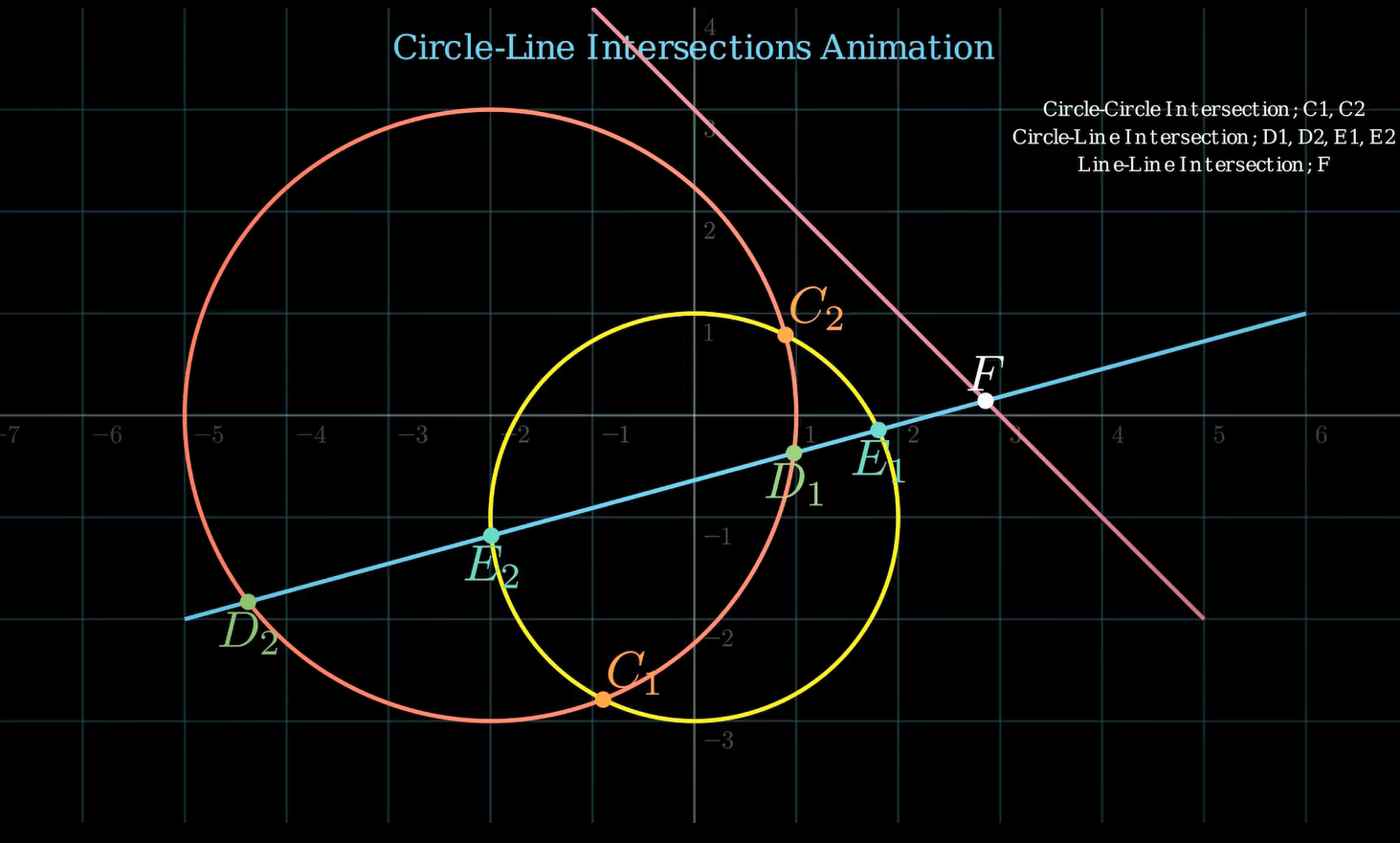

Legend

---

Final Transition

self.play(FadeOut(*self.mobjects), run_time=4)

• Smoothly fades everything out to conclude the animation.

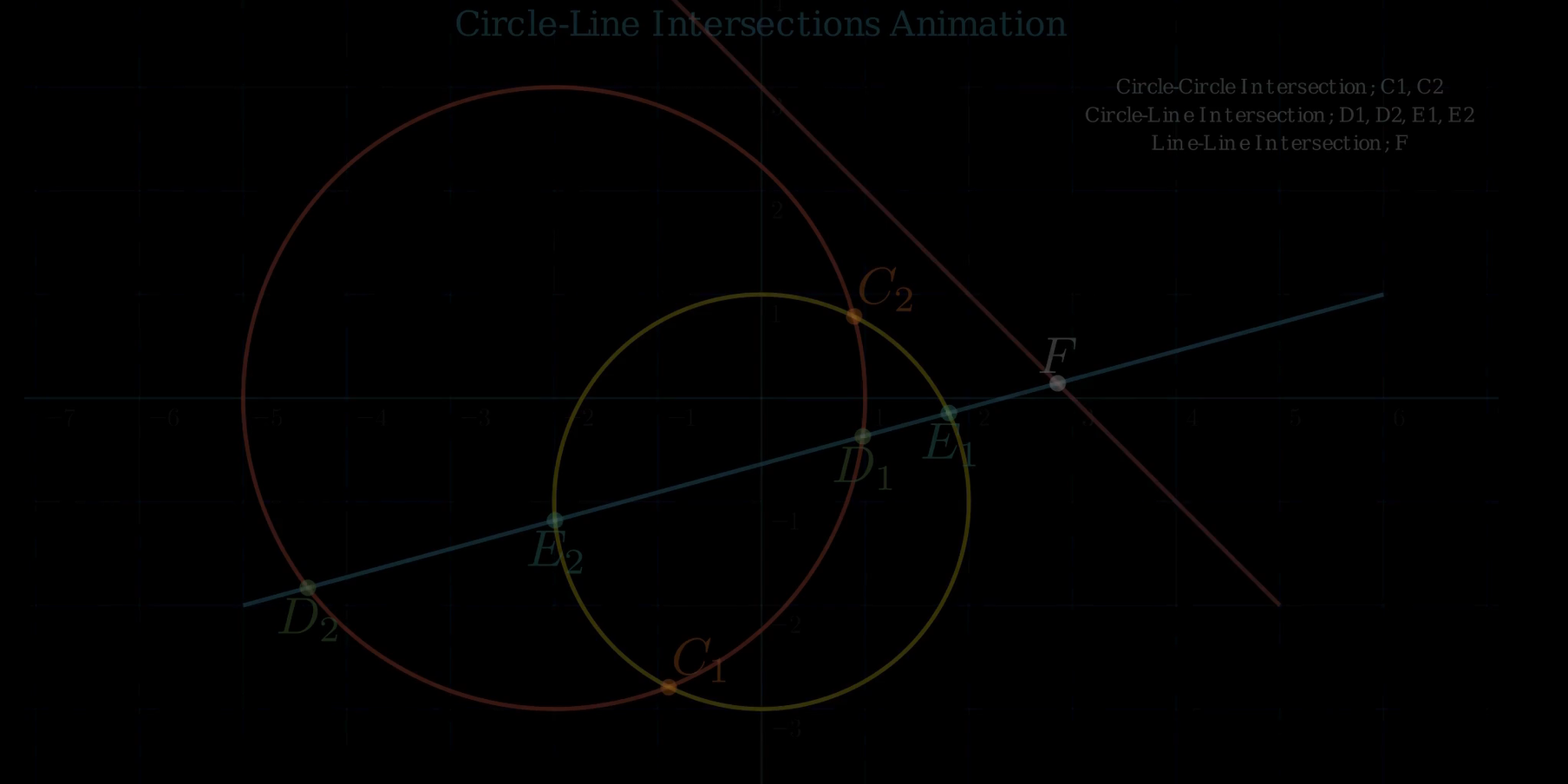

FadeOut

---

Summary of Key Concepts

Concept	Why It Matters
Coordinate Translation	Simplifies math, lets you assume origin at (0,0)
Determinants & Δ	Help decide how/if objects intersect
Scene Construction	Allows animation sequencing in Manim
Labeling & Coloring	Clarifies intersection points and relationships

---
