title: “Bubble Sort Algorithm” format: revealjs editor: visual

Overview

The Color Sorting Puzzle Algorithm is a visualization that demonstrates how to solve a common logic game involving containers filled with colored blocks. The goal is to rearrange the blocks so that each container holds blocks of a single color, using a limited number of allowed moves. The animation is implemented using the Manim library, showcasing a series of block transfers between containers based on a predefined sequence. It uses basic concepts of state tracking, container indexing, and visual feedback through animations to illustrate the sorting process step by step.

This educational tool not only visualizes the algorithmic flow but also emphasizes problem-solving strategies like planning moves and managing intermediate states. The animation concludes with a message indicating the number of moves taken to complete the puzzle, reinforcing the solution’s efficiency. This project serves as a visual introduction to sorting logic, puzzle-solving, and animation-driven learning.

Setup and Imports

from manim import *
import numpy as np

We import the core Manim library and numpy to assist in numeric comparison for positioning blocks accurately.
NumPy (short for Numerical Python) is a powerful open-source library in Python that is primarily used for numerical computing

Creating the Scene

class ColorSortingPuzzle(Scene):
    def construct(self):
        # Animation logic goes here

We define a class that inherits from Scene, the basic animation unit in Manim. The construct method is where all animations and visual logic go.

Title and Background

self.background_color = (BLACK)
title = Text("Color Sort Algorithm", font_size=26, color=BLUE).to_edge(UP * 0.5)
self.play(Write(title))
self.wait(1)

Set the background to black.
Create a text title.
Use Write to animate drawing the title.
self.wait(1) gives the audience time to read.

Initial State of Containers

initial_state = [
    ["red", "green", "blue", "yellow"],
    ["blue", "yellow", "green", "red"],
    ["yellow", "blue", "yellow", "green"],
    ["red", "red", "blue", "green"],
    [],
]

Each list is a container of colors, represented as strings. The last one is empty to allow moving blocks.

Container Positions

container_positions = [
    LEFT * 5, LEFT * 3, LEFT, RIGHT, RIGHT * 3
]

We define where each container will be placed horizontally in the scene using Manim’s positioning helpers (LEFT, RIGHT).

Color Mapping

color_map = {
    "red": RED,
    "green": GREEN,
    "blue": BLUE,
    "yellow": YELLOW,
}

Maps string color names to Manim’s color constants.

Step 1: Drawing Containers

def create_containers(self, positions):
    containers = []
    for pos in positions:
        container = Rectangle(height=4, width=1, color=LIGHT_GRAY).move_to(pos)
        self.play(FadeIn(container), run_time=0.3)
        self.wait(0.5)
        containers.append(container)
    return containers

Creates rectangle containers.
Animates them using FadeIn.
move_to(pos) places each container based on the earlier position list.

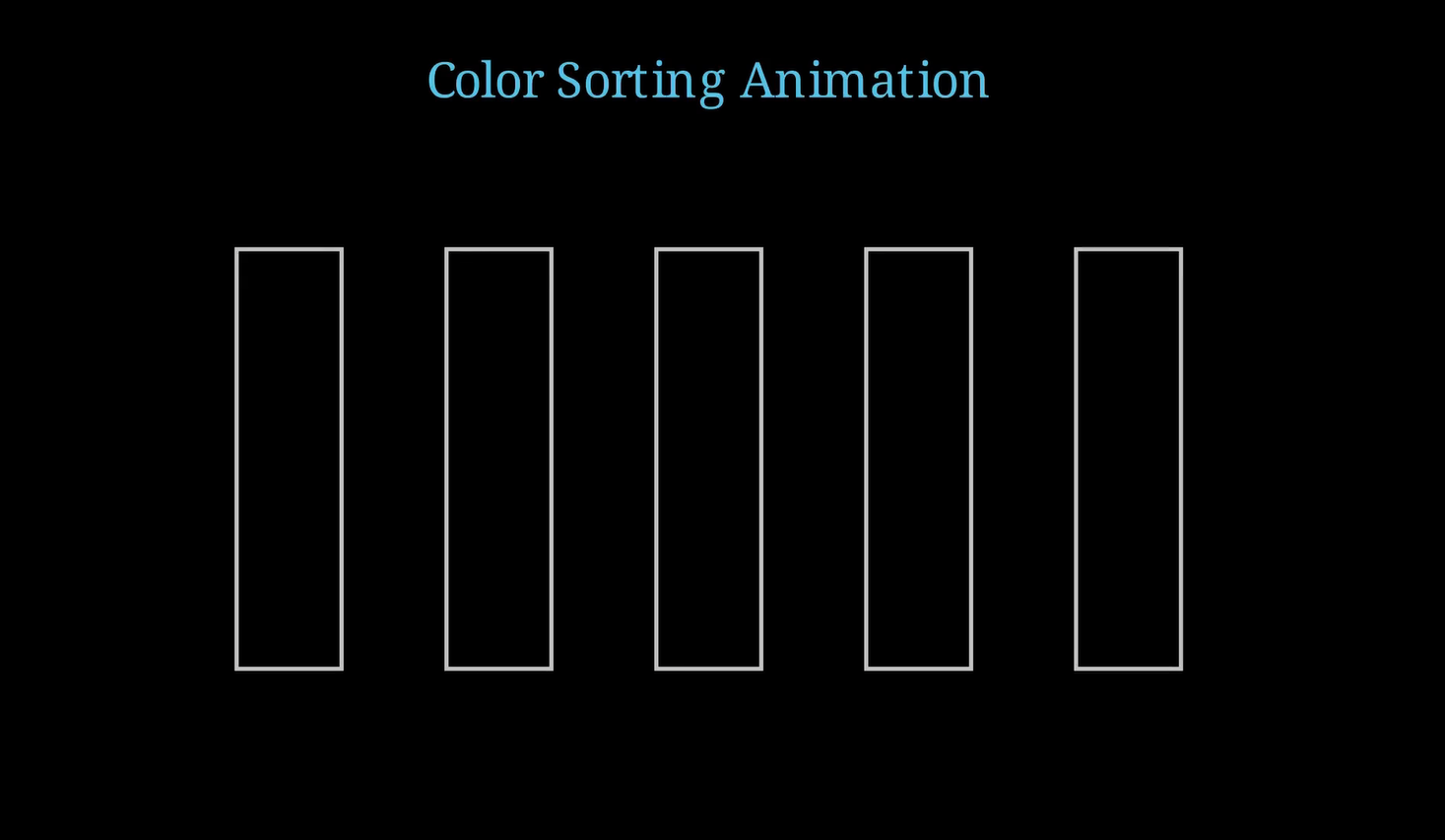

Initial Container Rendering Before Blocks

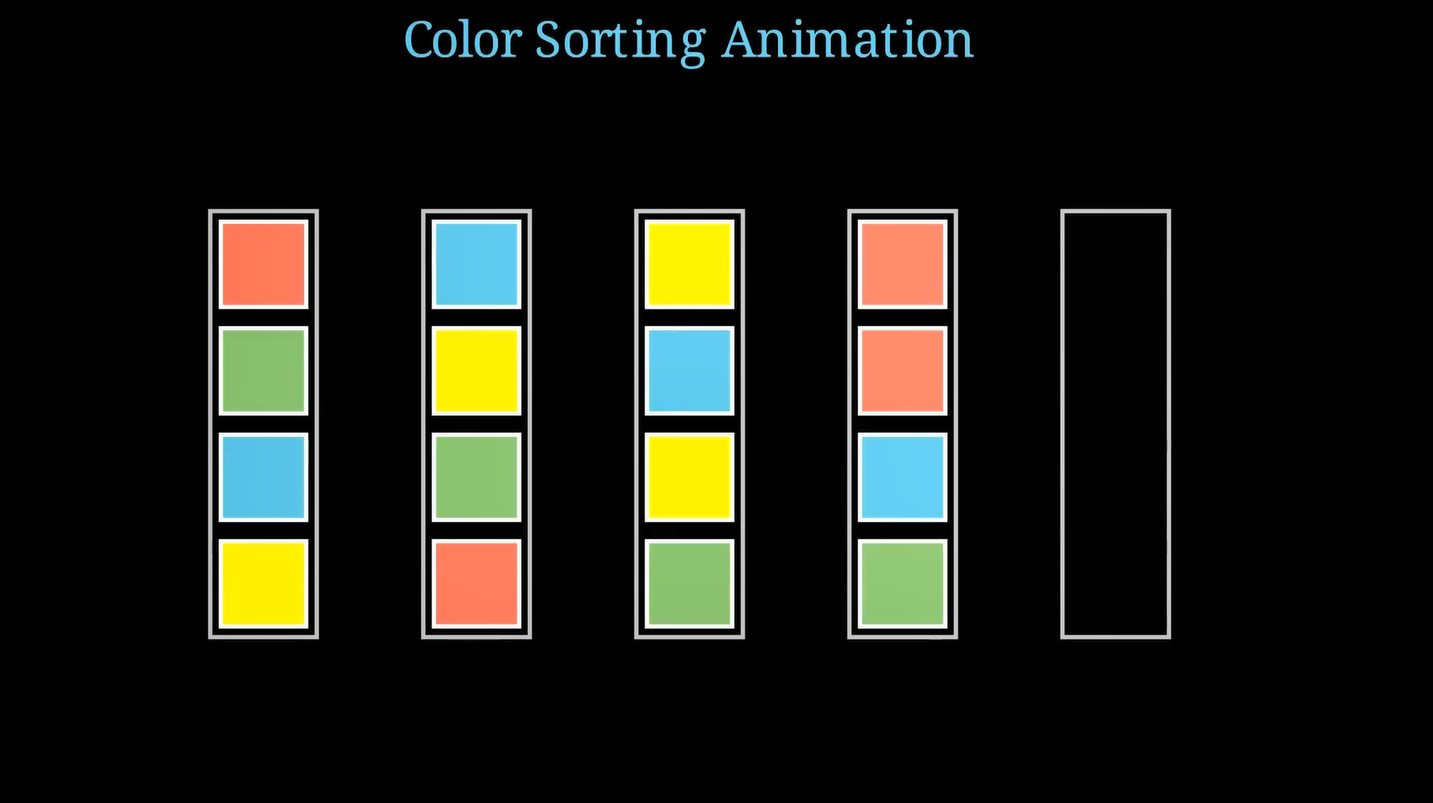

Step 2: Drawing Colored Blocks

def create_blocks(self, state, positions, color_map):
    blocks = []
    for i, container in enumerate(state):
        for level, color in enumerate(container):
            block = Square(side_length=0.8, fill_color=color_map[color], fill_opacity=1)
            block.move_to(positions[i] + UP * (1.5 - level))
            blocks.append(block)
            self.play(FadeIn(block), run_time=0.3)
            self.wait(0.5)
    return blocks

Draws each block based on its color and vertical position inside the container.
UP * (1.5 - level) vertically stacks them.

Defining Block Moves

moves = [
    (1, 5), (3, 5), (4, 1), (4, 5), (2, 4),
    ...
]

Each tuple represents moving the top block from one container to another: (source_index, destination_index).
This is the core logic of solving the puzzle visually.

Step 3: Animate the Moves

def animate_move(self, blocks, state, move, positions):
    src, dest = move
    src_index = src - 1
    dest_index = dest - 1

    if not state[src_index]:
        raise ValueError("No blocks to move...")

    source_top = len(state[src_index]) - 1
    block_to_move = self.get_block_at_position(blocks, positions[src_index], source_top)
    # ... (destination logic)
    self.play(block_to_move.animate.move_to(destination_position))

Moves a block by finding its position and animating its motion.
Also updates the state to reflect the change.

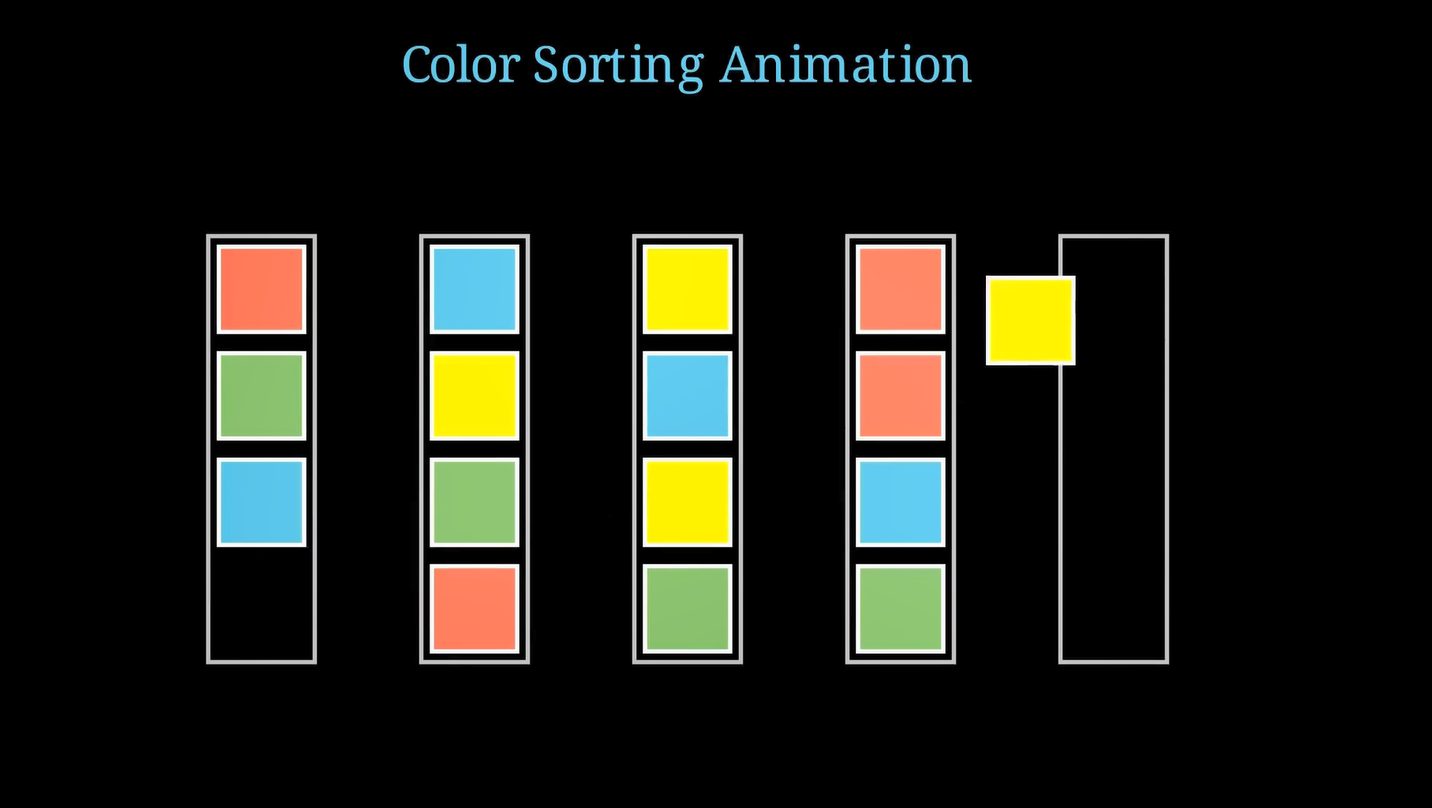

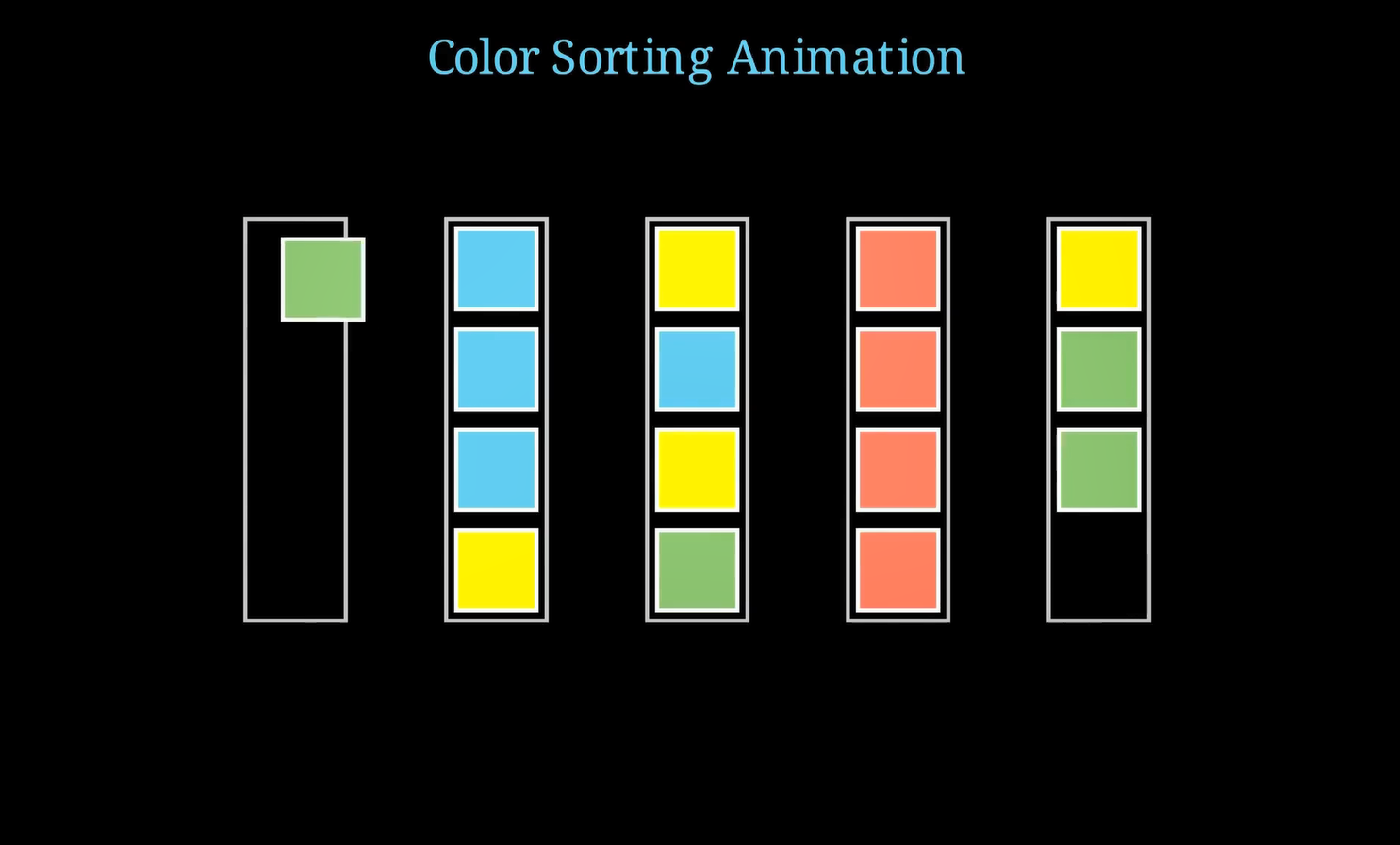

A Block Being Moved From One Container to Another

Locating Blocks

def get_block_at_position(self, blocks, container_position, block_level):
    target_position = container_position + UP * (1.5 - block_level)
    for block in blocks:
        if np.allclose(block.get_center(), target_position, atol=0.1):
            return block

Finds the block at a specific container and level using a tolerance-based position match.
This ensures the correct block is selected for animation.

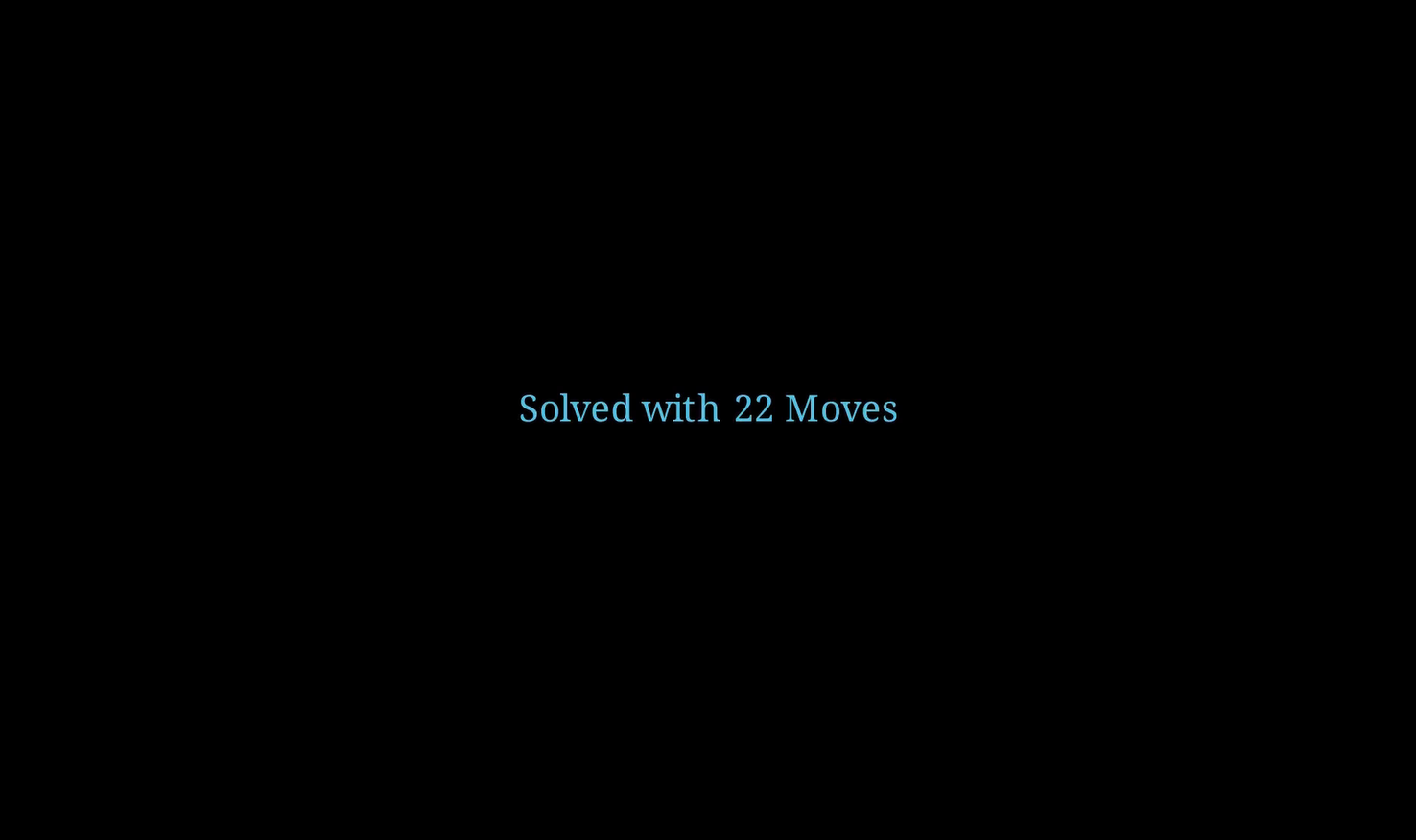

Final Message

def show_final_message(self, moves_count):
    for block in self.mobjects[5:]:
        self.play(block.animate.shift(UP * 3).set_opacity(0), run_time=0.2)
    final_message = Text(f"Solved with {moves_count} Moves", font_size=24, color=BLUE)
    self.play(FadeIn(final_message, run_time=0.5))

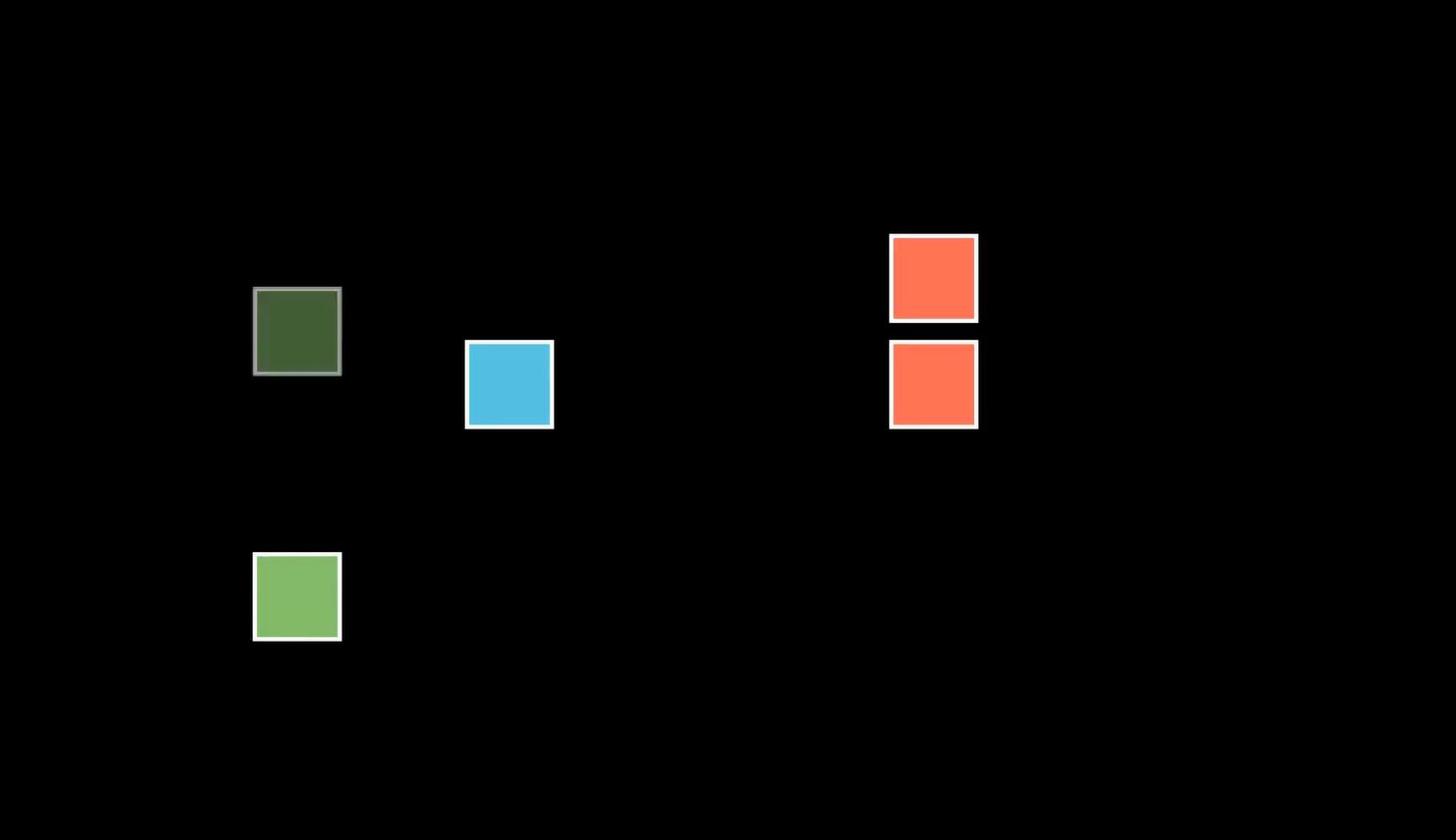

Animates the removal of all blocks.
Shows a summary message with total move count.

Ideas for Users

Define a new initial_state with different color orders or more containers.
Adjust the number of empty containers (e.g., try solving it with only one or two empty spaces).

Summary

In this project, we learned how to:

Structure a Manim animation using classes and helper functions.
Animate multiple elements (text, shapes, movement).
Maintain and update state as the animation progresses.

This technique can be extended to simulate other puzzles, algorithms, or even visual proofs.
