title: “Connect The Dot Animation” format: revealjs editor: visual

Introduction

The “Connect the Dots” animation visually demonstrates three different methods of linking data points: sequentially, by forming geometric shapes, and through random connections. This animation highlights how the same data can be interpreted and visualized in multiple ways depending on the context and purpose. It’s useful for teaching core data visualization concepts, showing patterns or randomness, and emphasizing the flexibility of visual storytelling with data. By engaging viewers visually, it encourages creative thinking about structure, relationships, and meaning in datasets, making it a valuable tool in both education and data science communication.

Imports and Setup

from manim import *
import numpy as np
import random

Explanation:

from manim import * – Imports all core Manim classes (e.g., Scene, Dot, Line, Text, etc.), providing access to animation and rendering tools.
import numpy as np – Provides numerical functions for generating data, such as ranges and random values.
import random – Python’s built-in module for random choices, used in randomized animations.

Create the Scene Class

class connectTheDots(Scene):
    def construct(self):
        # Animation logic goes here

Explanation:

Scene is the base class for Manim animations.
construct() is the main method where the animation logic is defined.

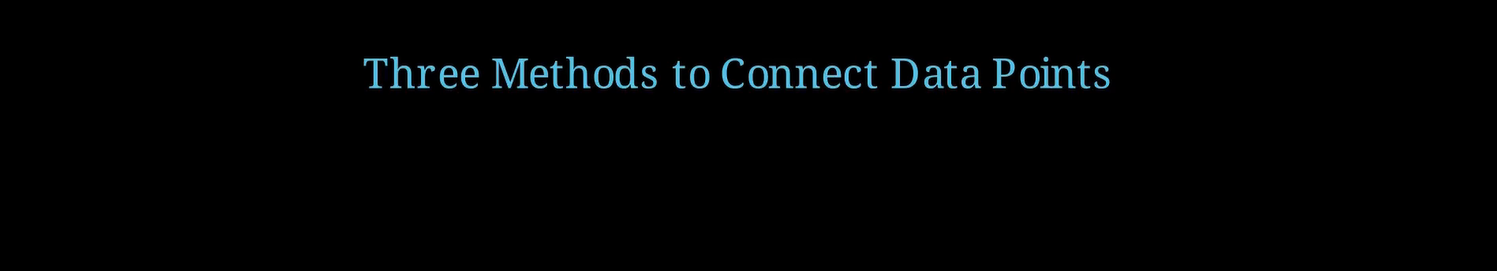

Title Display

title = Text("Three Methods to Connect Data Points", font_size=28, color=BLUE).to_edge(UP*0.5)
self.play(Write(title))
self.wait(2)

Explanation:

A title is created using Text, positioned near the top of the screen.
self.play(Write(...)) animates the writing of the title.

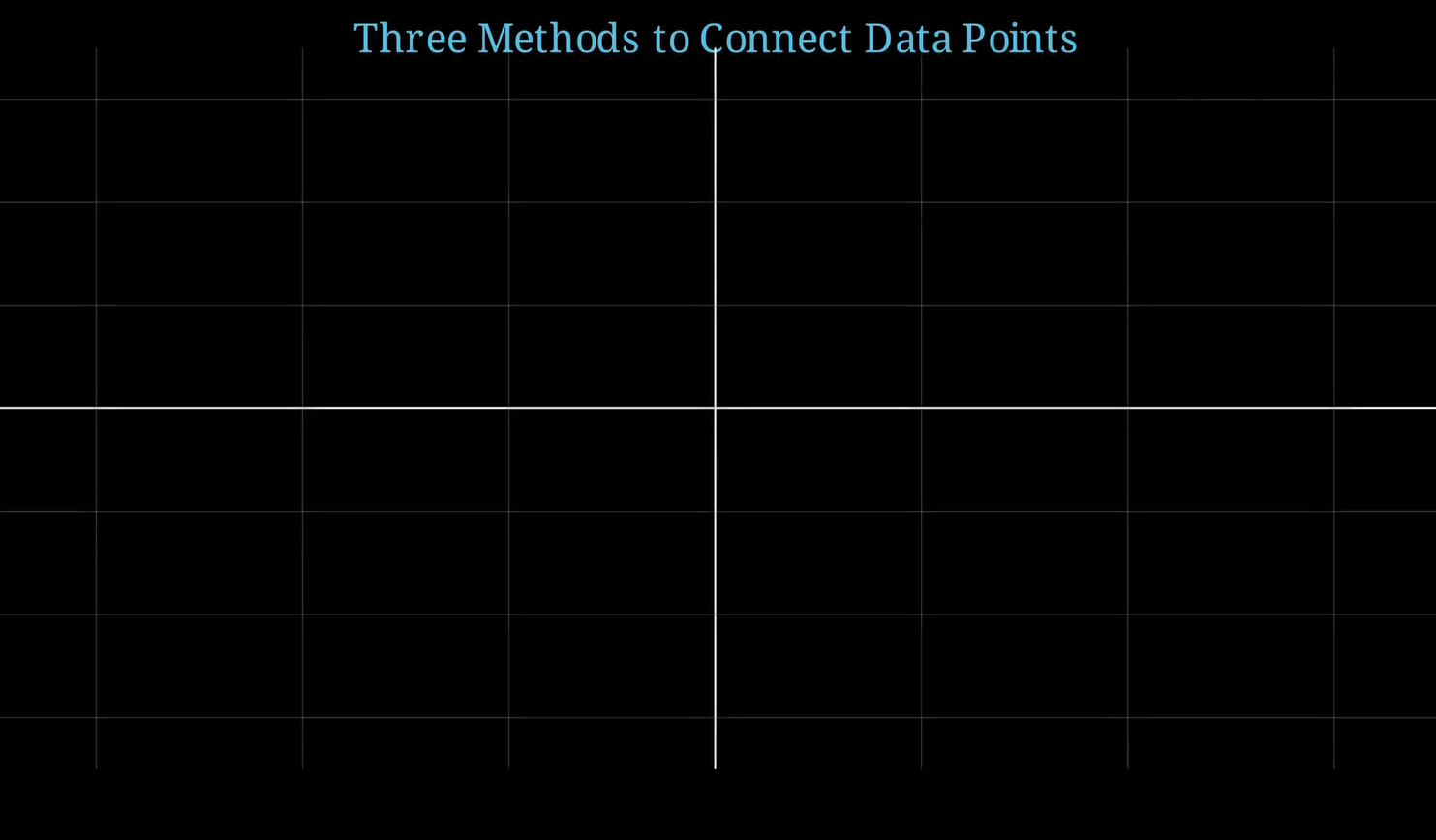

Create Coordinate Grid

ax = NumberPlane(
    x_range=[-10, 10, 2],
    y_range=[-3.5, 3.5, 1],
    background_line_style={"stroke_color": GRAY, "stroke_width": 1, "stroke_opacity": 0.5}
)

Explanation:

NumberPlane creates a Cartesian grid.
x_range and y_range set the grid’s extents.
The style is set for subtle grid lines.

Animate Axes Separately

x_axis = ax.get_x_axis()
y_axis = ax.get_y_axis()

x_axis.set_opacity(0)
self.add(x_axis)
self.play(x_axis.animate.set_opacity(1), Create(x_axis), run_time=1.5)

y_axis.set_opacity(0)
self.add(y_axis)
self.play(y_axis.animate.set_opacity(1), Create(y_axis), run_time=1.5)

Explanation:

Axes are added with initial opacity 0, then animated in.
This allows for gradual, controlled reveal of axes.

Fade in Grid Lines

grid_lines = VGroup()
grid_lines.add(ax.background_lines)
self.play(FadeIn(grid_lines), run_time=1)

Explanation:

VGroup groups all grid lines for collective animation.
FadeIn() smoothly displays the grid lines.

Generate Random Dots

xvals = [np.random.uniform(-6.5, 6.5) for _ in range(20)]
yvals = [np.random.uniform(-3.5, 3.5) for _ in range(20)]
colors = [np.random.choice([RED, GREEN, BLUE, YELLOW, MAROON, ORANGE, WHITE]) for _ in range(20)]

Explanation:

xvals, yvals: Generate random floating-point coordinates within the visible grid.
colors: Randomly select a color for each dot.

Create and Display Dots

dots = VGroup(*[Dot(point=[x, y, 0], color=c) for x, y, c in zip(xvals, yvals, colors)])
for dot in dots:
    dot.set_opacity(0)
self.add(dots)

self.play(
    LaggedStart(
        *[dot.animate.set_opacity(1) for dot in dots],
        lag_ratio=0.4
    ),
    run_time=2.5
)

Explanation:

Dots are instantiated at each (x, y) with a random color and grouped for animation.
They appear one after another using LaggedStart for a ripple effect.

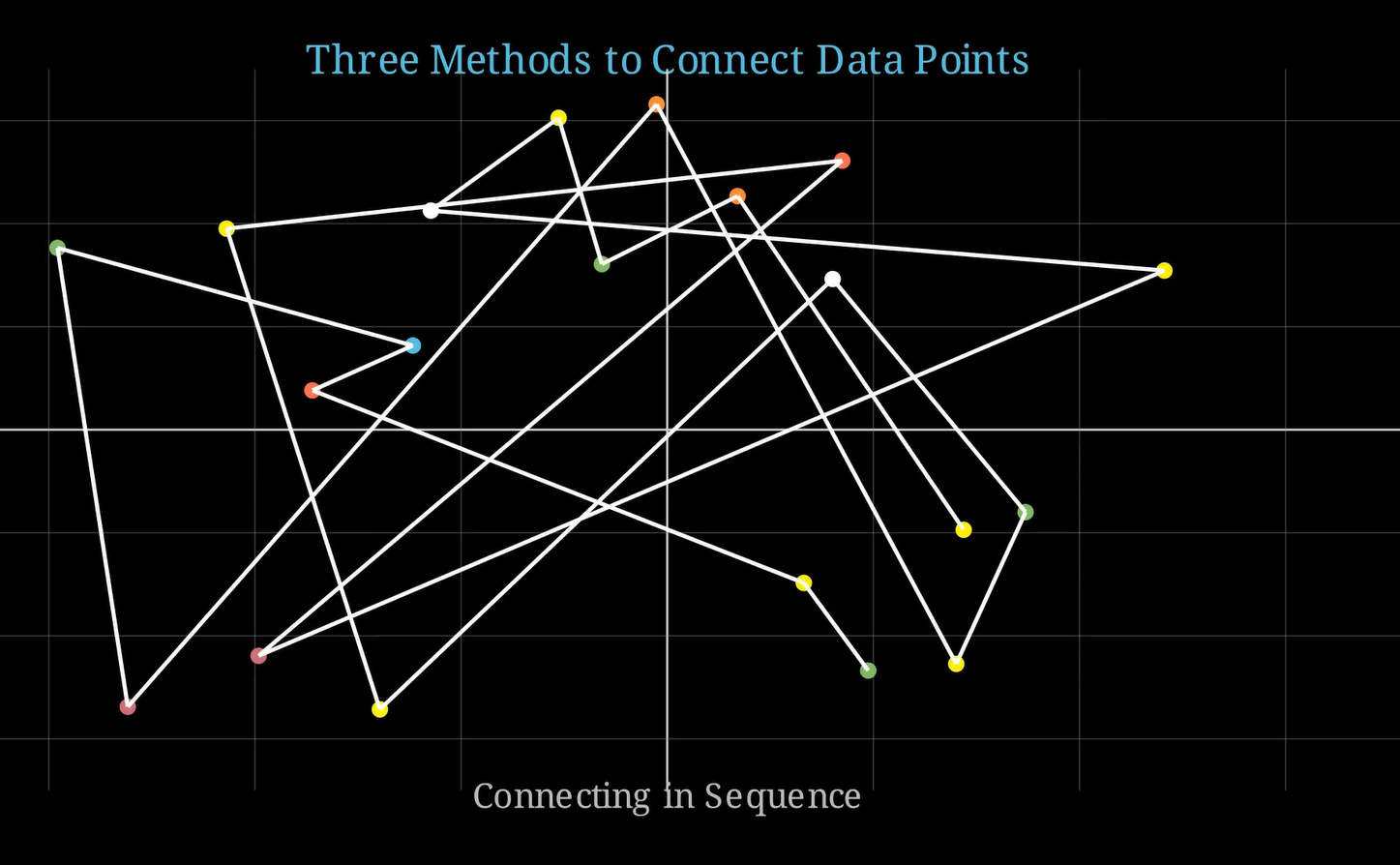

Method 1: Connecting in Sequence

subtitle1 = Text("Connecting in Sequence", font_size=24, color=LIGHT_GRAY).to_edge(DOWN * 0.5)
self.play(Write(subtitle1))

lines_seq = VGroup(
    *[Line(start=dots[i].get_center(), end=dots[i+1].get_center()) for i in range(len(dots) - 1)]
)
self.play(
    LaggedStart(*[Create(line) for line in lines_seq], lag_ratio=0.6),
    run_time=8,
    rate_func=rate_functions.linear
)

Explanation:

Lines are drawn between each pair of consecutive dots, visualizing ordered or sequential data.

Method 2: Shapes

subtitle2 = Text("Connecting by Creating Different Shapes", font_size=24, color=LIGHT_GRAY).to_edge(DOWN*0.5)
self.play(Write(subtitle2))

shapes = [
    Polygon(dots[0].get_center(), dots[2].get_center(), dots[5].get_center(), dots[6].get_center()),
    Polygon(dots[10].get_center(), dots[4].get_center(), dots[3].get_center(), dots[1].get_center()),
    Polygon(dots[12].get_center(), dots[2].get_center(), dots[4].get_center(), dots[9].get_center()),
    Polygon(dots[4].get_center(), dots[8].get_center(), dots[12].get_center()),
    Polygon(*[dots[i].get_center() for i in range(0, len(dots) - 2, 5)])
]
for shape in shapes:
    self.play(Create(shape), run_time=2)
    self.wait(1)
    self.play(FadeOut(shape))

Explanation:

Custom polygons are created by selecting groups of dots.
Demonstrates clustering and group relationships.

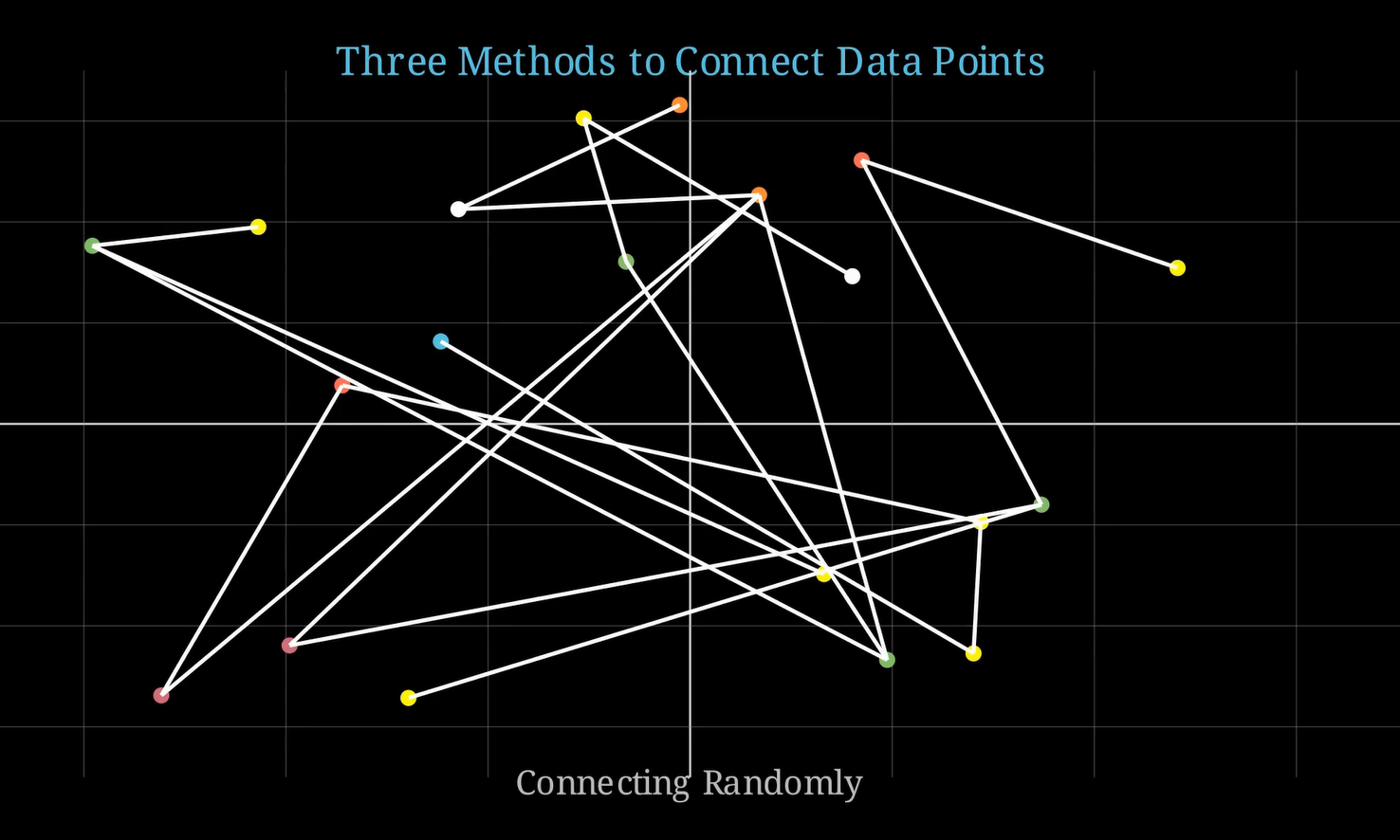

Method 3: Random Connections

subtitle3 = Text("Connecting Randomly", font_size=24, color=LIGHT_GRAY).to_edge(DOWN * 0.5)
self.play(Write(subtitle3))

random_lines = VGroup(
    *[
        Line(
            start=dots[i].get_center(),
            end=dots[random.randint(0, len(dots) - 1)].get_center()
        ) for i in range(len(dots))
    ]
)
self.play(
    LaggedStart(
        *[Create(line) for line in random_lines],
        lag_ratio=0.6
    ),
    run_time=8,
    rate_func=rate_functions.linear,
)

Explanation:

Each dot is connected to a randomly chosen other dot, illustrating unpredictable relationships.

Final Fade Out

all_content = VGroup(title, ax, dots, lines_seq, subtitle1)
self.play(FadeOut(all_content, scale=1.5), run_time=2)
self.wait(1)

Explanation:

All scene content fades and scales out, providing a clean ending.

Summary

Step	Purpose
np.random.uniform()	Controls dot coordinates
random.randint()	Used for randomized line connections
Text(), Dot(), Line()	Core visual components
LaggedStart, FadeIn, FadeOut	Animation effects
VGroup	Groups elements for animation
