Introduction

This animation visualizes the Nearest Neighbor algorithm using Manim by connecting a set of random points in a path that always moves to the closest unvisited point. It highlights the start, dynamically traces the path, and zooms the camera for better visual understanding. The algorithm is often used in routing, robotics, and clustering problems, especially for approximating solutions to the Traveling Salesman Problem where finding the shortest path through multiple points is essential.

Setup and Class Definition

from manim import *

class PathFinder(MovingCameraScene):
    def construct(self):
  • from manim import *: Imports all necessary components from the Manim library.
  • PathFinder class: Defines a new scene that supports camera movements.
  • construct method: This is where we define the animation steps.

Title Display

title = Text("Path Finding with the Nearest Neighbor Algorithm", font_size=26, color=BLUE).to_edge(UP*0.5)
self.play(FadeIn(title))
  • Text: Renders the title text.
  • to_edge(UP*0.5): Positions the title near the top.
  • FadeIn: Animates the text fading into view.

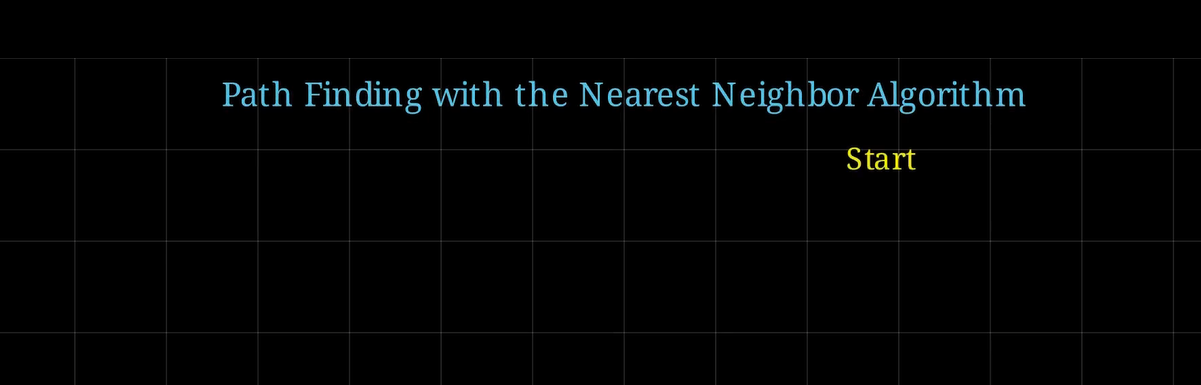

Title

Closest Neighbor Function

def closest_neighbor(given_point, points):
    points_array = np.array(points)
    distances = np.linalg.norm(points_array - given_point, axis=1)
    closest_index = np.argmin(distances)
    return closest_index
  • Purpose: Finds the nearest point to a given one using Euclidean distance.
  • np.linalg.norm: Calculates the vector distance between points.
  • np.argmin: Returns the index of the closest point.

Coordinate Grid

npl = NumberPlane(
    x_range=[-30,30,1],
    y_range=[-30,30,1],
    background_line_style={
        "stroke_color": WHITE,
        "stroke_width": 1,
        "stroke_opacity": 0.2,
    },
)
npl.axes.set_opacity(0)
self.add(npl)
  • NumberPlane: Draws a coordinate grid.
  • Styling: Sets a faint background grid.
  • Hiding axes: The actual axis lines are hidden to reduce clutter.

Generating Points

pts = [(np.random.uniform(-6,6), np.random.uniform(-3,3), 0) for _ in range(50)]
pt2 = np.array(pts)
  • Generates 50 random 2D points.
  • z = 0: Maintains compatibility with 3D positioning in Manim.

Finding the Start Point

start = None
maxsum = 0
isodist = 0
for pt in pts[0:100]:
    dists = np.sort(np.linalg.norm(pt2 - pt, axis=1))
    sum = np.sum(dists[0:3])
    if sum > maxsum:
        maxsum = sum
        isodist = dists[1]
        start = pt
  • Goal: Find the point farthest from others (high isolation).
  • dists[0:3]: Looks at the closest 3 neighbors.
  • start: Used as the initial point in the nearest neighbor search.
  • isodist: Saved for visual radius later.

Nearest Neighbor Path Ordering

sorted_pts = [start]
pts.remove(start)
while len(pts) > 0:
    idx = closest_neighbor(sorted_pts[-1], pts)
    sorted_pts.append(pts[idx])
    pts.remove(pts[idx])
  • Greedy nearest neighbor: Picks the closest unvisited point next.
  • Builds the ordered path connecting all points.

Drawing the Circles

circs = VGroup(
    *[Circle(radius=isodist, stroke_width=0, color=BLUE, fill_opacity=0.25).set_z_index(-2).move_to(pt) for pt in sorted_pts]
)
  • Visual flair: Faint circles represent search radius.
  • set_z_index(-2): Sends them behind other visuals.

Path and Dots

path = VMobject()
path.set_points_smoothly(sorted_pts).set_stroke(width=.05)

start_label = Text("Start", font_size=24, color=YELLOW).move_to(start)
self.play(FadeIn(start_label))
  • VMobject: Draws the smoothed path using all sorted points.
  • Start label: Shows the starting location.

Displaying Points

for pt in sorted_pts:
    dot = Dot(point=pt, radius=.05, color=RED)
    self.add(dot)
  • Adds red dots for each point to the scene for clarity.

Circle Animation

self.play(
    *[GrowFromPoint(circ, circ.get_center()) for circ in circs],
    run_time=4,
    rate_func=rate_functions.linear,
)
self.play(circs[0].animate.set_fill(color=YELLOW))
  • Circle growth animation: Fills the plane with popping radius visuals.
  • Highlight start: First circle gets yellow fill to emphasize start.

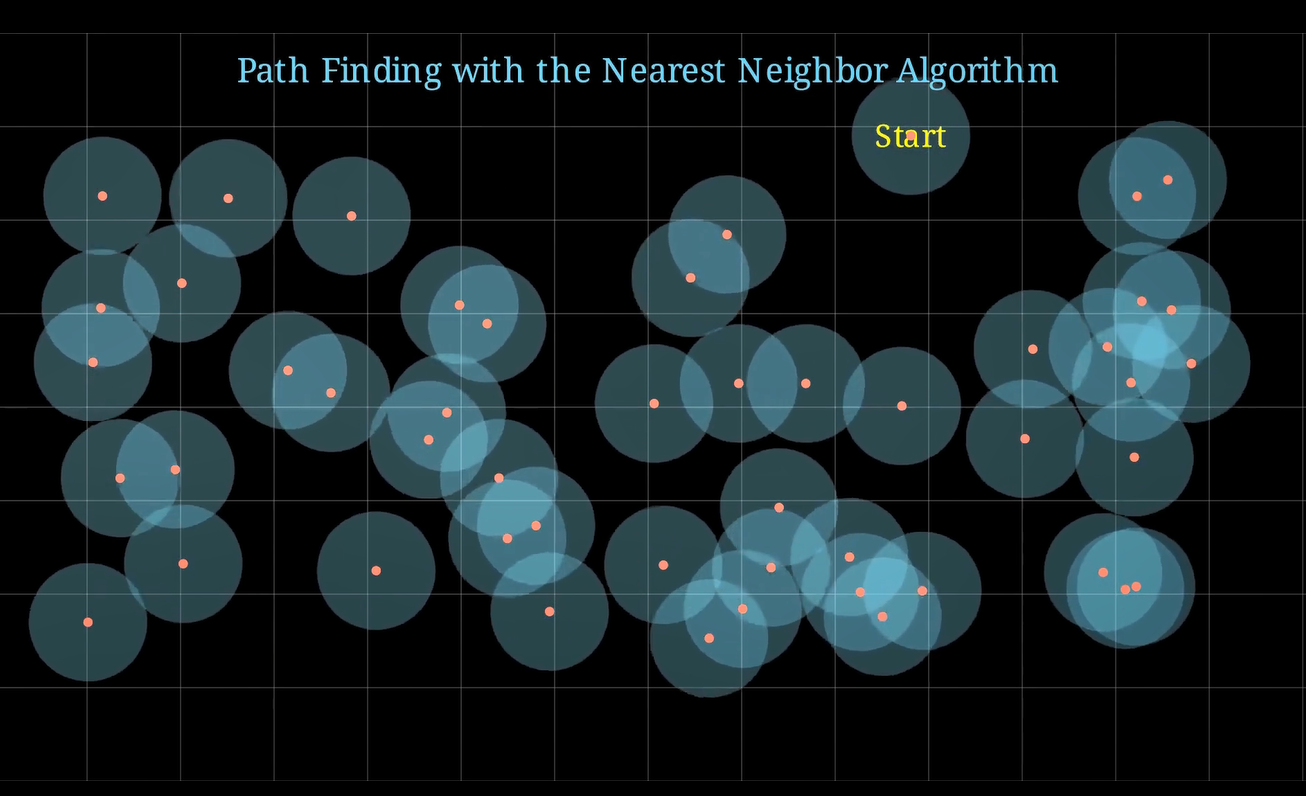

Circles Surrounding Points

Camera Zoom and Dot Movement

self.play(
    self.camera.frame.animate.scale(0.25).move_to(path.get_start()),
    *[FadeOut(circ) for circ in circs],
    run_time=3
)
  • Camera zooms into the start.
  • Fades out the visual clutter for focus.

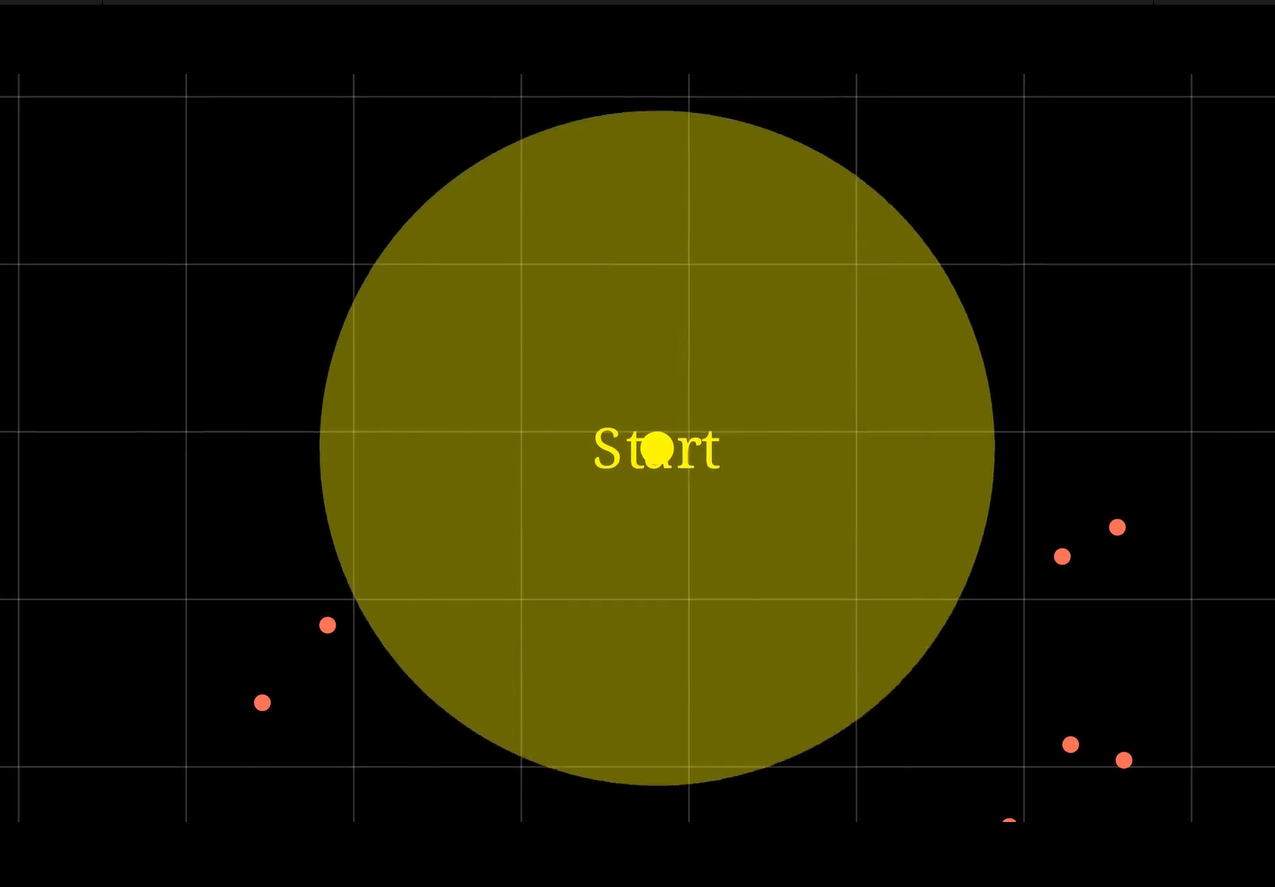

Camera Zooms into the Start Point

Path Tracing

d = Dot(radius=0.10, color=YELLOW).move_to(path.get_start())
trace = TracedPath(d.get_center, stroke_width=2.5, stroke_color=YELLOW)
self.add(d, trace)
  • Yellow dot represents the “walker”.
  • TracedPath: Leaves a trail as the dot moves.

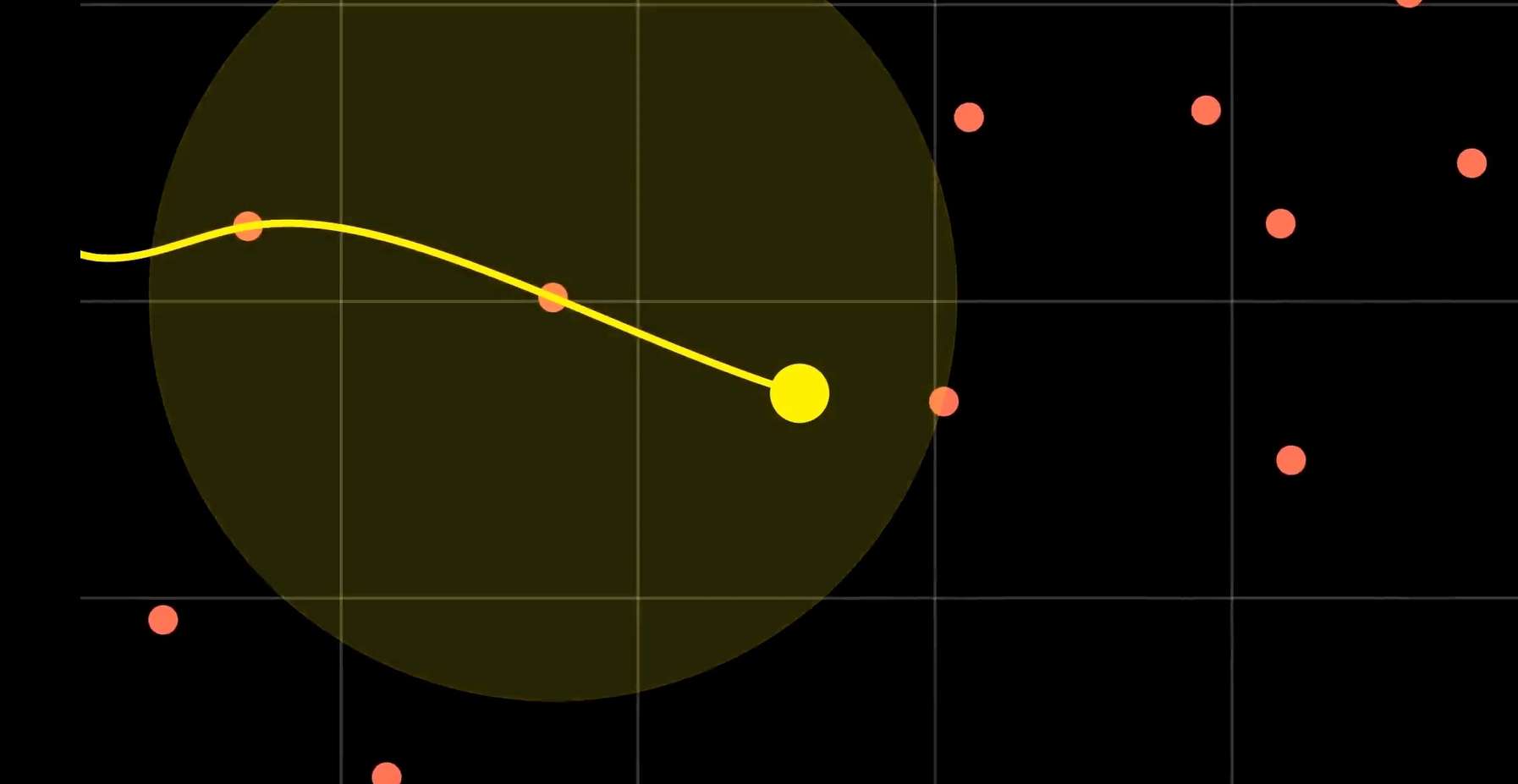

TracedPath

Animation Along Path

for pt in sorted_pts[1:]:
    startprop = path.proportion_from_point(d.get_center())
    endprop = path.proportion_from_point(pt)
    radius = np.linalg.norm(d.get_center()-pt)
    circ = Circle(radius=radius, color=YELLOW, fill_opacity=0.4, stroke_width=0).move_to(d.get_center())

    self.play(
        self.camera.frame.animate.scale_to_fit_height(2*radius)
    )
    self.play(GrowFromPoint(circ, d.get_center()))
    self.play(
        MoveAlongPath(d, path, rate_func=lambda t: startprop + t * (endprop - startprop)),
        MoveAlongPath(self.camera.frame, path, rate_func=lambda t: startprop + t * (endprop - startprop)),
        FadeOut(circ)
    )
  • Dynamic travel: Dot and camera move to each next point.
  • Yellow expanding circle indicates current transition.

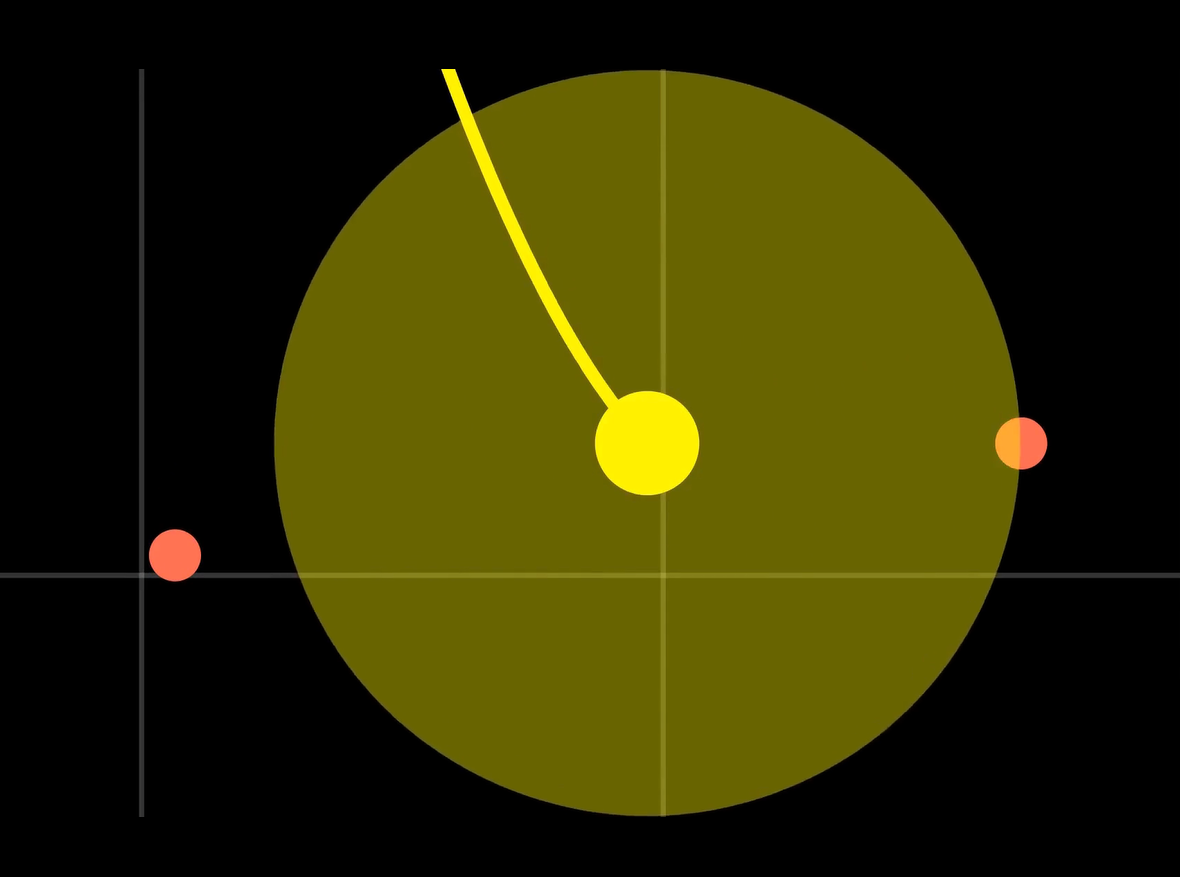

The Yellow Circle finds any Point Nearby and Adds a Path

Final Labels and Conclusion

endpoint_label = Text("End", font_size=24, color=YELLOW).move_to(path.get_end())
self.add(endpoint_label)
self.play(self.camera.frame.animate.scale_to_fit_height(8).move_to(ORIGIN), run_time=3)
  • Final label: Marks endpoint.
  • Camera resets to overview.

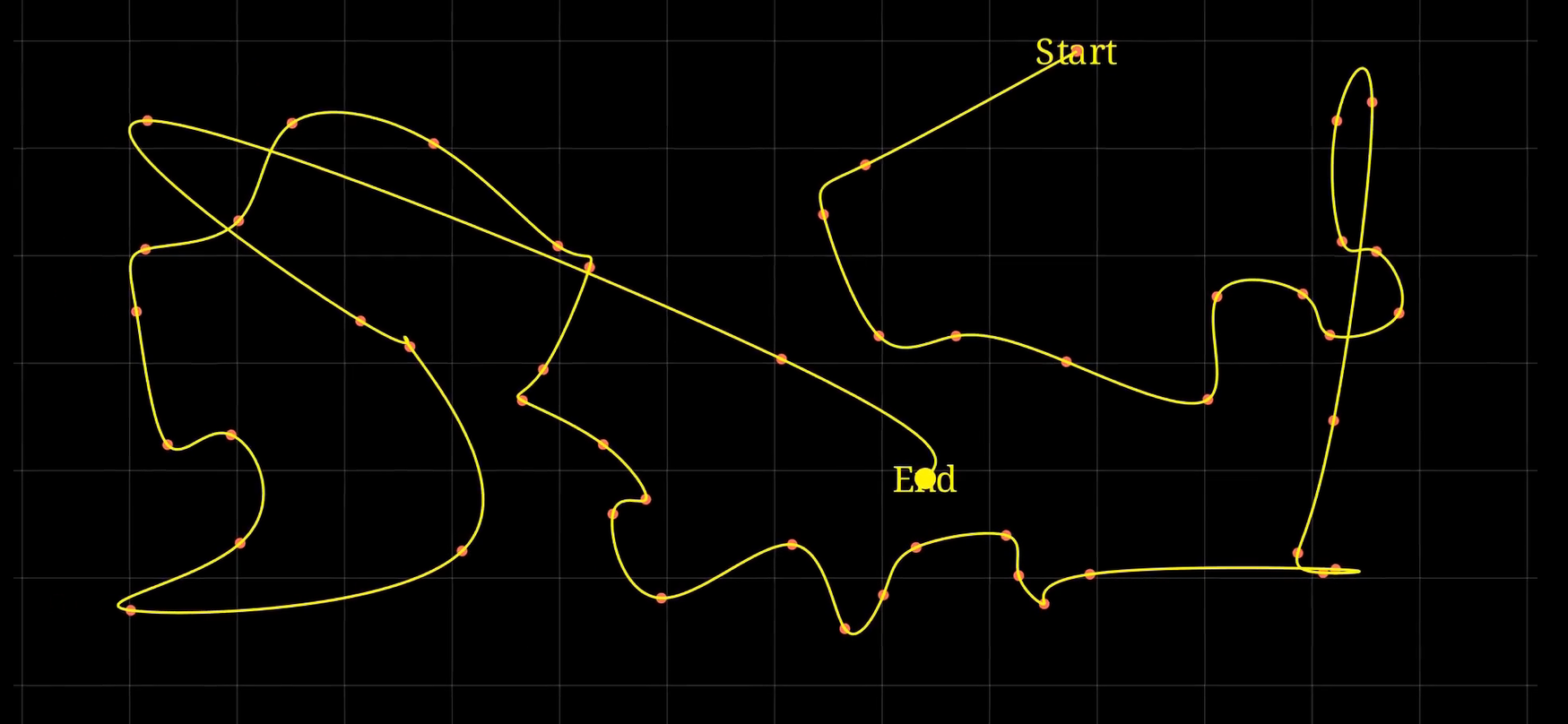

Complete Algorithm with Start and End Lebeled

Cleanup and Final Message

self.play(FadeOut(Group(*self.mobjects)))

final_text = Text(
    "The nearest neighbor algorithm is a method for finding the closest point in a set...",
    font_size=18, color=WHITE
).move_to(ORIGIN)

self.play(FadeIn(final_text, run_time=3))
self.wait(4)
  • Fades out all visuals for clarity.
  • Displays explanation of the algorithm for viewer takeaway.

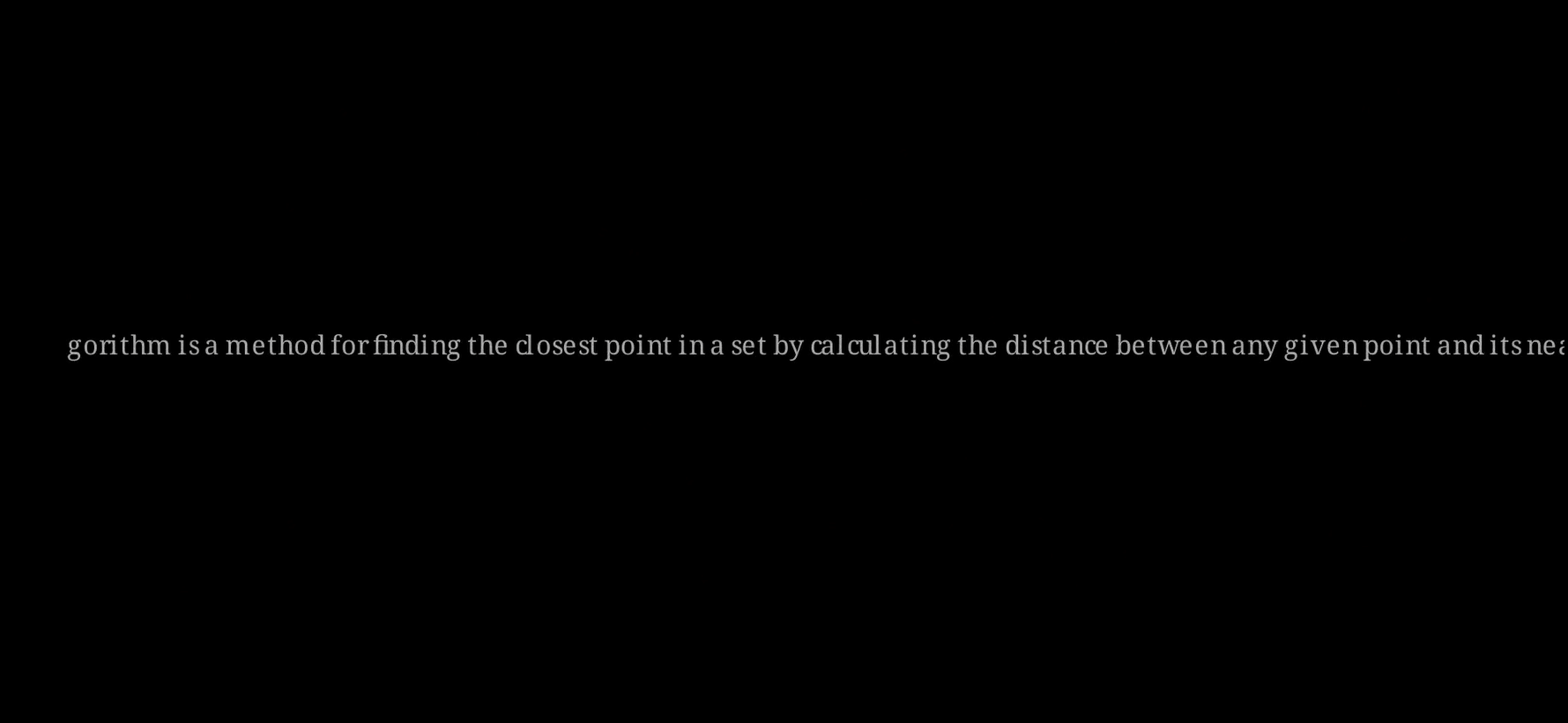

FInal Text Explanation of the Algorithm

Task for the viewer

  • Adjust the code and add new line to ensure the final text is displayed within the animation window.

Summary

  • Created a point cloud and visual path.
  • Animated nearest-neighbor traversal.
  • Used Manim’s camera controls, animations, and TracedPath.
