Introduction

SPI (Serial Peripheral Interface) is faster and simpler than I2C, with no addressing delays, making it better for high-speed data transfer (e.g., SD cards, displays). However, SPI requires more wires (4+ vs. I2C’s 2) and lacks built-in acknowledgment, making I2C better for multi-device, low-speed systems (e.g., sensors). I2C supports hot-swapping, while SPI needs fixed connections. Choose SPI for speed, I2C for simplicity and scalability—each excels in different embedded applications.

1. Imports, Constants, and Main Class

from manim import *

CPOL = 0
CPHA = 0

class Main(Scene):
    ...

Explanation:

  • from manim import *: Imports all modules from the Manim library, used for creating mathematical and technical animations.
  • CPOL (Clock Polarity) and CPHA (Clock Phase): Constants used to configure SPI (Serial Peripheral Interface) clock behavior.
    • CPOL: Determines the idle state of the clock (0 = low idle).
    • CPHA: Determines when data is sampled (0 = on leading/first edge).
  • class Main(Scene): Defines the main animation scene that will be rendered by Manim.

2. Plotting Step Functions (Digital Data Lines) - Function Start

def plot_step_function(
    self, data_bits, axe, color, initial_y, CPHA=0, dy=0, disabled=True
):
    initial_x = 1.5 if CPHA else 0 if disabled else 0.5
    start_x = initial_x
    start_y = initial_y
    stroke_width_data = 8
    stroke_width_empty = 2

    # Leading line if enabled
    if not disabled:
        additional_line = Line(
            axe.c2p(axe.x_range[0], start_y),
            axe.c2p(initial_x, start_y),
            color=color,
            stroke_width=stroke_width_empty,
        )
        self.play(Create(additional_line), run_time=0.25)

Explanation:

  • Purpose: Visualizes step-wise digital signals (e.g., CS, MOSI, or MISO lines).
  • initial_x: Sets starting X position based on CPHA and whether the line is disabled.
  • Leading line: If enabled, a horizontal line is drawn from the y-axis to the signal start, helping to visually anchor the signal.

3. Plotting the Data Bits (Continued)

    for i, bit in enumerate(data_bits):
        end_x = initial_x + i + 1
        line = Line(
            axe.c2p(start_x, start_y),
            axe.c2p(end_x, start_y),
            color=color,
            stroke_width=stroke_width_data if bit == 1 else stroke_width_empty,
        )

        if CPHA and i == len(data_bits) - 1:
            pass
        else:
            self.play(Create(line), run_time=0.25)

        # Vertical transition if bit changes
        if i < len(data_bits) - 1 and data_bits[i + 1] != bit:
            transition_line = Line(
                axe.c2p(end_x, start_y),
                axe.c2p(end_x, initial_y - dy + data_bits[i + 1]),
                color=color,
                stroke_width=stroke_width_empty,
            )
            self.play(Create(transition_line), run_time=0.1)

        start_x = end_x
        start_y = (
            initial_y - dy + data_bits[i + 1]
            if i < len(data_bits) - 1
            else initial_y - dy
        )

Explanation: - Horizontal lines: Each bit is drawn as a horizontal segment. - Bit 1: Drawn with a thicker line. - Bit 0: Drawn with a thinner line. - Vertical transitions: When the bit value changes, a vertical line is drawn showing the signal transition. - CPHA adjustment: Handles timing of the line drawing based on SPI clock phase.

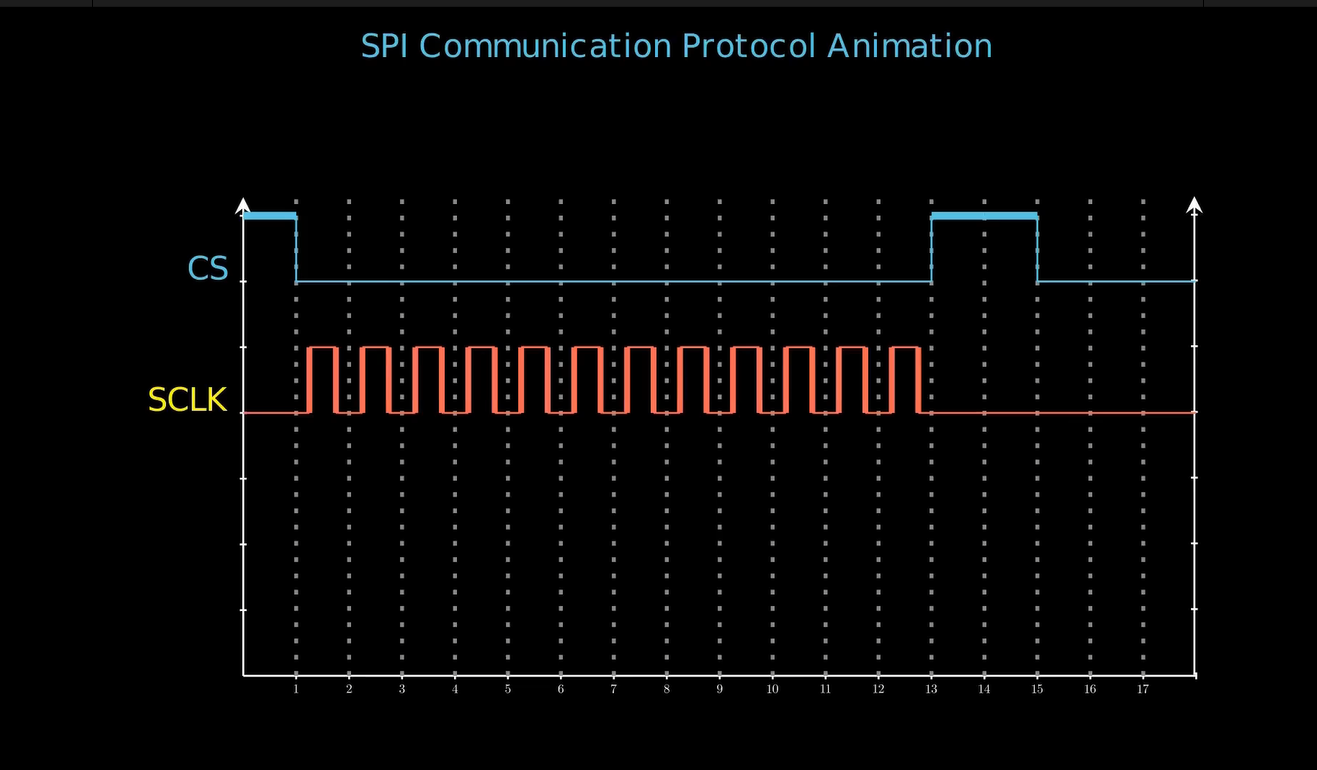

Showing Bits Difference with Thickness

4. Plot Step Function: Final Line

    if not disabled:
        additional_line = Line(
            axe.c2p(initial_x + len(data_bits), start_y),
            axe.c2p(axe.x_range[1], start_y),
            color=color,
            stroke_width=stroke_width_empty,
        )
        self.play(Create(additional_line), run_time=0.25)

Explanation: - Final extension: Extends the signal line to the end of the axis for clarity if enabled.

5. Generating the SPI Clock Signal

def generate_clock_signal(self, length, axe, color, initial_y, CPOL=0):
    start_x = 1
    start_y = initial_y + 1 if CPOL else initial_y
    stroke_width_data = 6
    stroke_width_empty = 2

    # Initial idle line
    no_clock_line_1 = Line(
        axe.c2p(axe.x_range[0], start_y),
        axe.c2p(start_x, start_y),
        color=color,
        stroke_width=stroke_width_empty,
    )
    self.play(Create(no_clock_line_1), run_time=0.25)

Explanation:

  • Clock signal initialization: Sets the starting point of the SPI clock waveform.
  • Idle line: Draws the clock’s idle state before the first pulse, with the level determined by CPOL.

6. Clock Signal Cycles

    for i in range(start_x, length + 1):
        ...

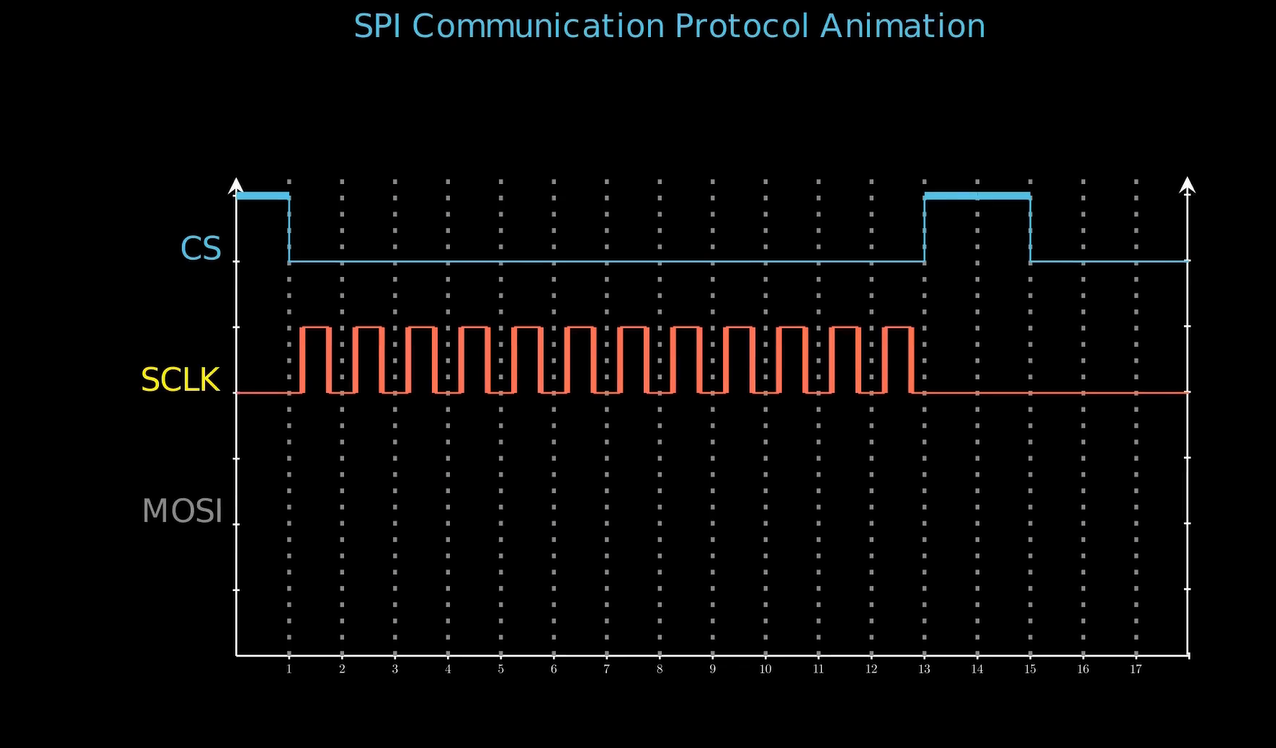

        self.play(Create(low_state_start), run_time=0.1)
        self.play(Create(rising_edge), run_time=0.25)
        self.play(Create(high_state), run_time=0.1)
        self.play(Create(falling_edge), run_time=0.25)
        self.play(Create(low_state_end), run_time=0.1)

        start_x = start_x + 1

Explanation:

  • For each clock cycle:
    • Low state start: Horizontal line at the low level.
    • Rising edge: Vertical line up (clock goes high).
    • High state: Horizontal line at the high level.
    • Falling edge: Vertical line down (clock goes low).
    • Low state end: Returns to the low baseline.
  • These steps animate the SPI clock waveform.

Rising, Falling, and Low State

7. Final Idle Clock Line

    no_clock_line_2 = Line(
        axe.c2p(length + 1, start_y),
        axe.c2p(axe.x_range[1], start_y),
        color=color,
        stroke_width=stroke_width_empty,
    )
    self.play(Create(no_clock_line_2), run_time=0.25)

Explanation:

  • Final idle extension: Draws the idle clock line after the last pulse, indicating the clock has returned to its idle state.

Final Extension

8. Drawing Dotted Bit Separators

def create_dotted_lines(self, axe, length, run_time=0.2):
    animations = []
    for i in range(1, length + 1):
        dotted_line = DashedLine(
            axe.c2p(i, 0),
            axe.c2p(i, 7.25),
            dash_length=0.05,
            dashed_ratio=0.3,
            color="GREY",
        )
        animations.append(Create(dotted_line))
    return AnimationGroup(*animations, run_time=run_time)

Explanation:

  • Purpose: Draws vertical dashed lines at each bit position for visual clarity.
  • Helps segment: Each bit in SPI transmission is clearly separated.

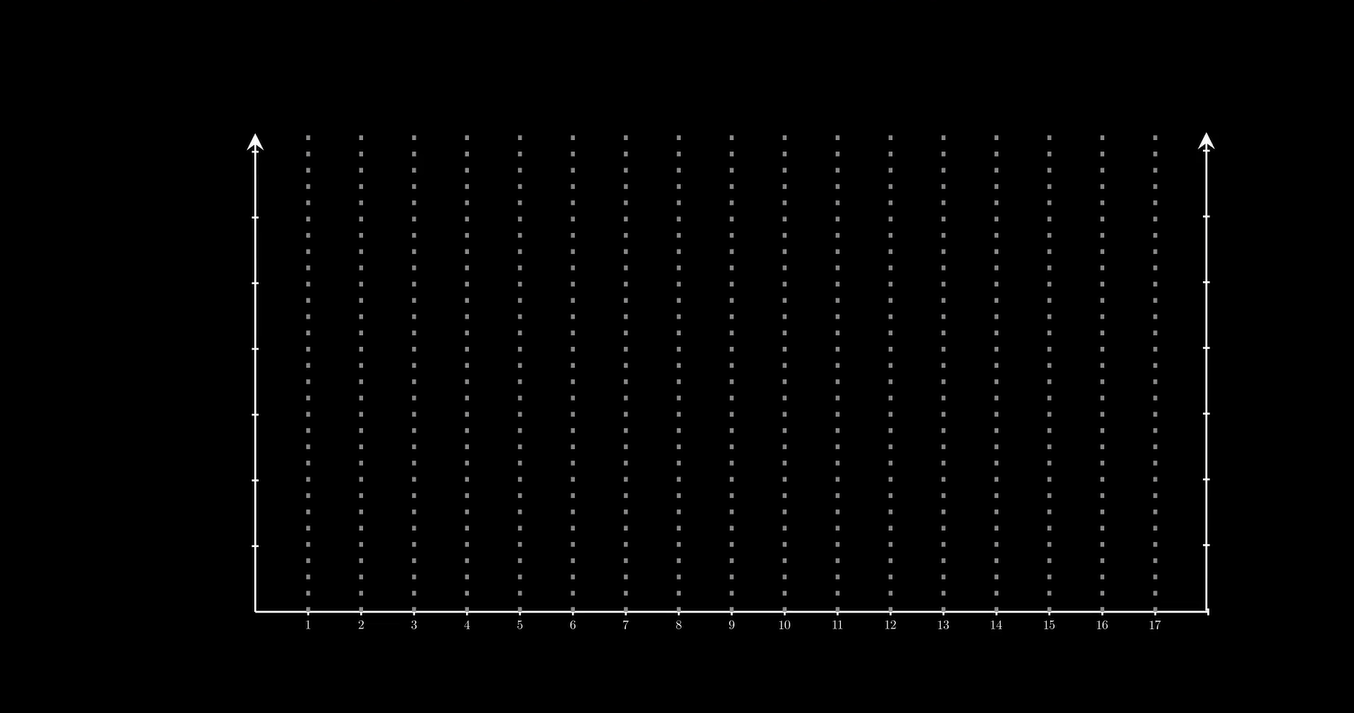

Dotted Vertical Lines at Each Bit Position

9. Scene Construction: SPI Data Setup

def construct(self):
    cs_line_data =   [1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 1, 0, 0, 0]
    mosi_line_data = [0, 1, 0, 1, 0, 0, 1, 1, 0, 0, 0, 0, 0, 1, 0, 0, 0]
    miso_line_data = [0, 1, 1, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 1, 0, 0]
    ...

Explanation:

  • Data lists: Represent the bit sequences for:
    • CS (Chip Select)
    • MOSI (Master Out, Slave In)
    • MISO (Master In, Slave Out)

10. Axes, Labels, and Title Setup

    axe = Axes(...)
    extra_y_axis = axe.get_y_axis().copy().next_to(...)
    ...
    title = Text("SPI Communication Protocol Animation", ...).to_edge(UP*0.5)
    self.play(Create(title), run_time=1)

Explanation:

  • Axes: X-axis shows time/bit positions; Y-axis shows signal levels.
  • Extra Y-axis: For visual clarity.
  • Title: Scene title is created and displayed.

11. Animation Sequence

    self.play(Create(axe), Create(extra_y_axis), ...)
    ...
    self.play(Write(cs_line_label))
    self.plot_step_function(cs_line_data, ...)
    ...
    self.generate_clock_signal(...)
    ...
    self.plot_step_function(mosi_line_data, ...)
    self.plot_step_function(miso_line_data, ...)

Explanation:

  • Timeline:
    • Axes and dotted lines appear first.
    • CS line drawn (starts SPI communication).
    • SPI clock is generated.
    • MOSI and MISO data lines are animated.
    • Each signal is labeled before being drawn.

12. CS Line Transition and Scene Fade Out

    self.play(Create(cs_transition_line), ...)
    self.play(Create(cs_disable_line), ...)
    ...
    self.play(*[FadeOut(mob) for mob in self.mobjects], ...)

Explanation:

  • CS transitions: Indicate end of SPI communication.
  • Fade out: Scene elements fade for a smooth and professional animation exit.

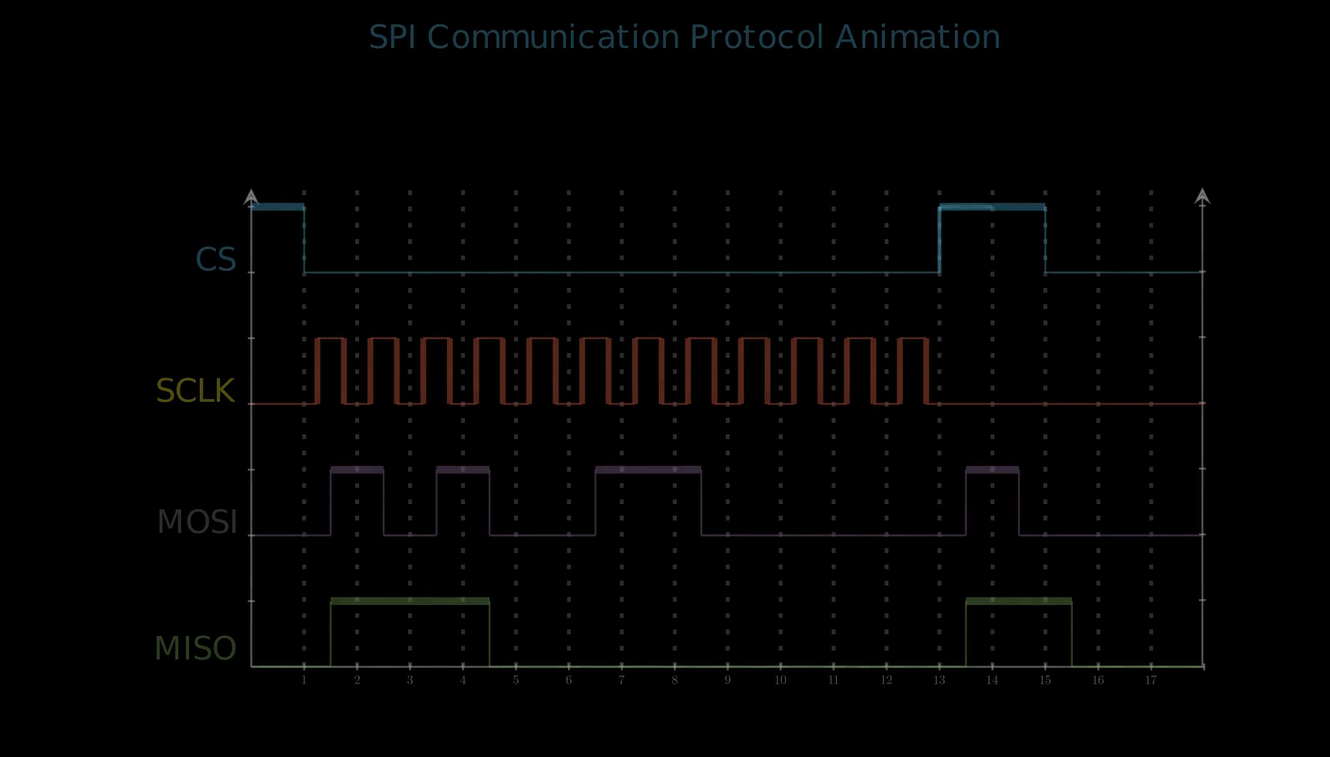

Final Scene FadeOut

Summary

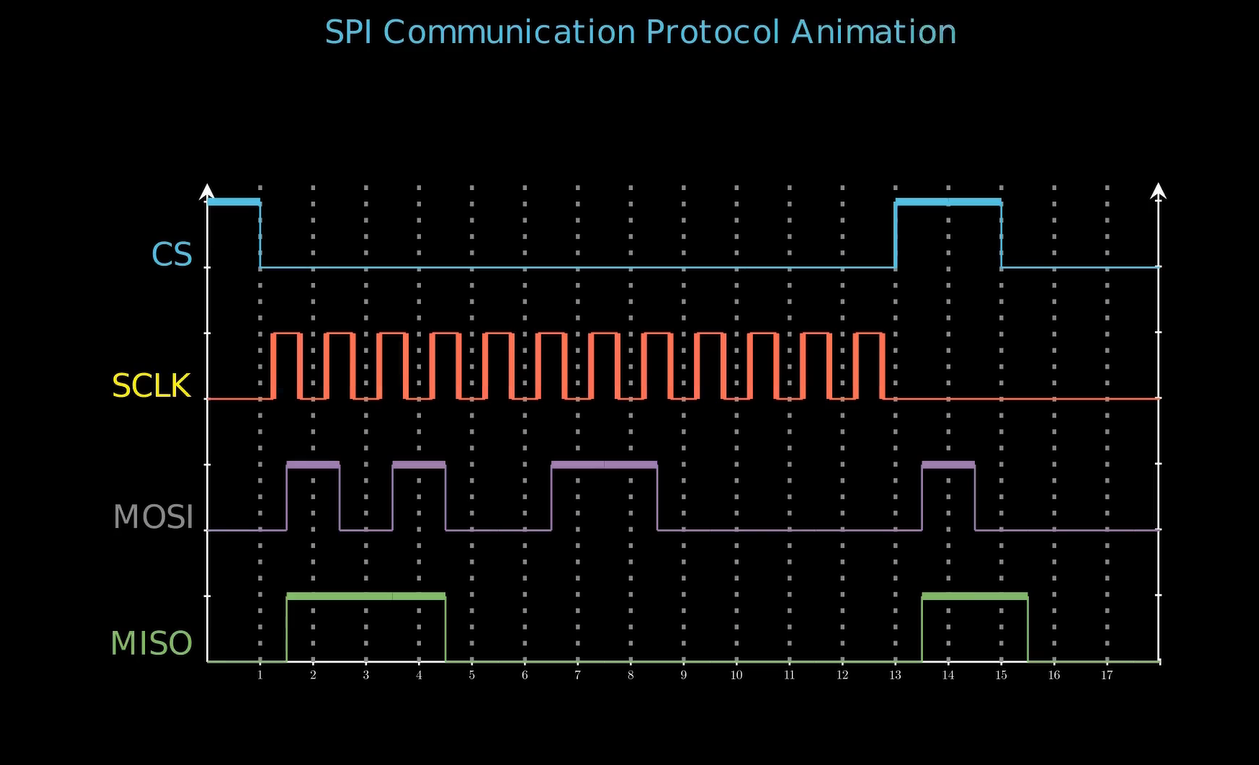

  • The code uses Manim to visually animate the SPI protocol signals.
  • plot_step_function: Animates step-wise transitions for digital data lines (CS, MOSI, MISO).
  • generate_clock_signal: Animates the SPI clock in sync with data transfer, respecting CPOL.
  • create_dotted_lines: Adds vertical dashed lines to mark each bit interval.
  • construct: Orchestrates the entire animation, from axes and labels to signal transitions and scene fade-out.
  • Purpose: Provides a clear, educational visualization of how SPI signals interact during data transfer.
